Sargent 8245-LNMJ-613

• Lockbodies include outside front, strike, and mounting screws.
• Backset- 2-3⁄4" only
• For doors 1-3⁄4" thick standard

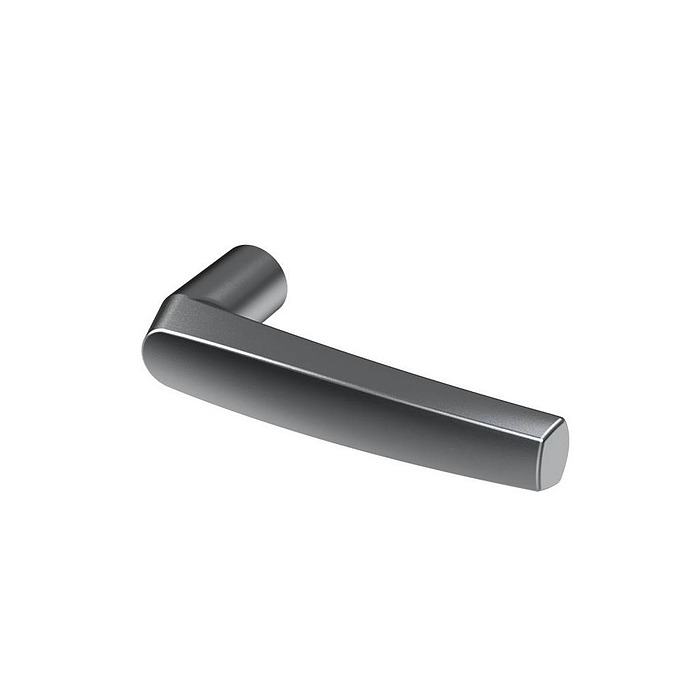

• Trim included, LN Rose, MJ Lever
• Finish - 613 Oil Rubbed Bronze
• Handed product, must specify
• Keyed Random

Available Options: Choose Options Above

• Finish:

  • Oil Rubbed Bronze (US10B)

• Handing:

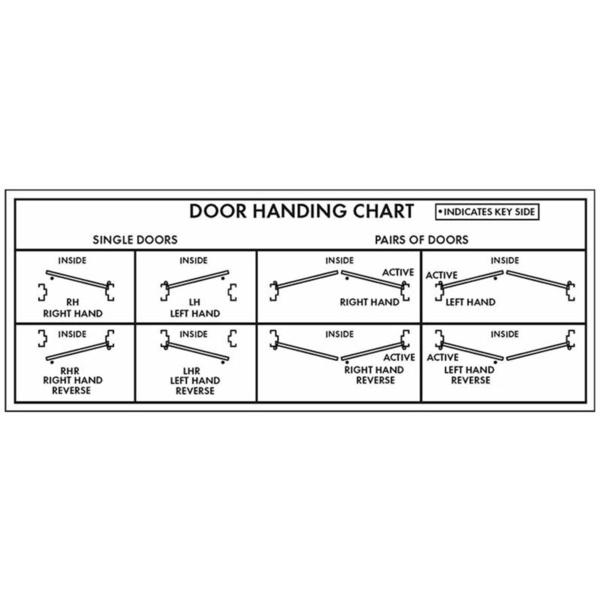

  Handing

  ×





  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.





  Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse (LHR)
  • Right Hand Reverse (RHR)
  • Right Hand (RH)
  • Left Hand (LH)
