Sargent 8252-ALP-32D-LAKD

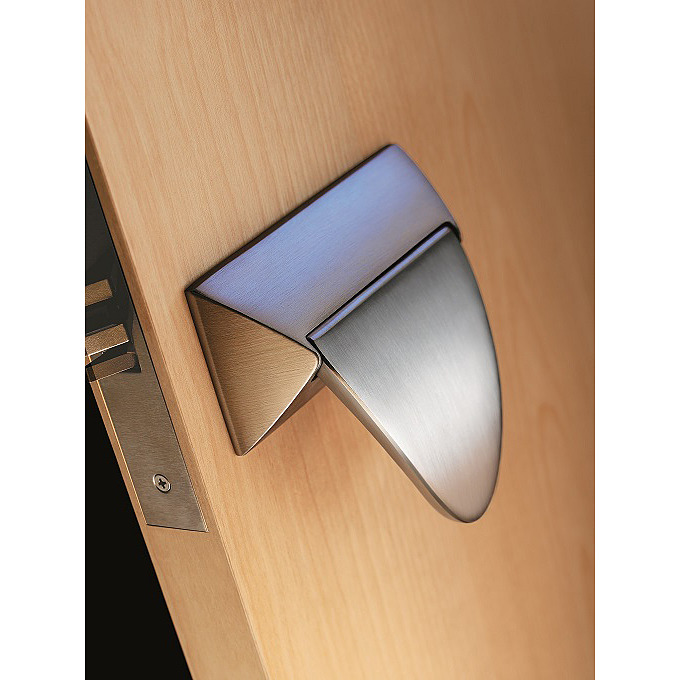

Special Order Ligature Resistant Institutional Deadbolt Mortise Lock with Push-Pull Trim

SKU: 8252-ALP-32D-LAKD

Price: $676.00 /each

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This is a non stock item that ships direct from Sargent. The 8252ALP Ligature Resistant Asylum or Institutional function mortise lock with push/pull trim provides an alternative to standard push/pull products. Heavy duty push/pull hardware that is flexible, easy to use and aesthetically pleasing allows its use in many types of environments. Appropriate for behavioral healthcare settings and beautiful enough for healing environments, this trim offers multiple mounting options and easy operation. Hands free operation .

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $676.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding?

Help Me Decide


Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Choose Finish:


Special order non stock item with 4 week lead time.
  • Institutional Deadbolt function, Key from either side retracts and projects deadbolt.
  • Key from either side retract latchbolt.
  • Paddle inside and out are always locked.
  • Auxiliary deadlatch.
  • Paddle can be mounted in horizontal (up or down) and vertical (sideways) orientations in the field.
  • Paddle trim is non-handed; lockbody is easily field reversible.
  • Door thickness 1-3/4" to 1-7/8".
  • Backset 2-3/4".
  • Outside front plate-8"x 1-1/4".

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)
  • Finish:

  • Covers are cast stainless steel or brass.
  • Deadbolt,one-piece hardened stainless steel, with 1" projection.
  • Latchbolt, stainless steel 3/4" projection one-piece, anti-friction reversible latch.
  • 4-7/8" ANSI Strike with 1-1/4" curved lip.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • ADA,Meets A117.1 Accessibility Code.
  • Complies with American Disability Act.
  • Meets BOMA International 4.13.8.
  • UL and cUL Listed for use with 3 hour fire “A” label 4 x 10 single and 8 x 10 double and lesser class doors.
  • Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies.
  • Available in many other finishes.Contact us for pricing.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Special Order Ligature Resistant Institutional Deadbolt Mortise Lock with Push-Pull Trim
