Sargent 8265-LE1J-26D

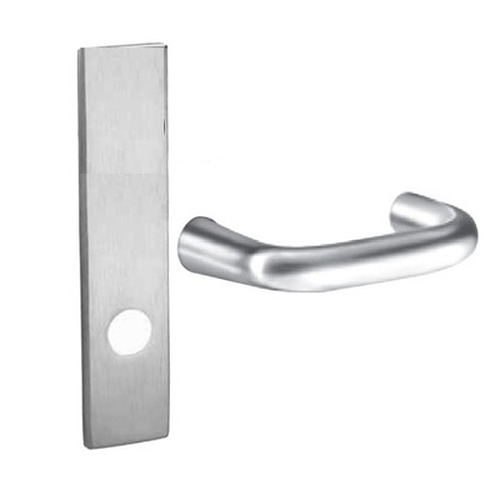

Privacy Function Complete Mortise Lock with Lever and Decorative Plate

Quick Product Details

  • Complete Mortise Lock
  • Privacy Function
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: 8265-LE1J-26D

This Sargent 8265LE1 is a mortise lock package supplied with a lever and an LE1 style decorative plate. This lock is used for privacy function applications. Its outside lever will retract the latchbolt unless it is locked by the thumbturn on the inside. The inside lever will always retract the latchbolt and unlock the outside lever. Thumbturn on the inside locks and unlocks the outside lever.Closing the door will unlock the outside lever. An emergency release will release the outside knob.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Call for Pricing 1-866-749-7661
QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Product at A Glance

  • There are two exposed screws inside the decorative plate
Style Mortise lock
Function Privacy Function:
- Outside lever retracts the latch bolt, unless it is locked by thumbturn on the inside< br>- Inside lever retracts the latch bolt and unlocks the outside lever
- Thumbturn locks and unlocks the outside lever
- Closing the door will unlock the outside lever.< br>- Emergency release unlocks the outside lever
- ANSI F22
Design Escutcheon - LE1 style 7-5/8" x 1-3/4"
- J Style Lever
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Decorative Plate 8" high X 2" wide
Body 4-3/32" deep X 5-31/32" high
