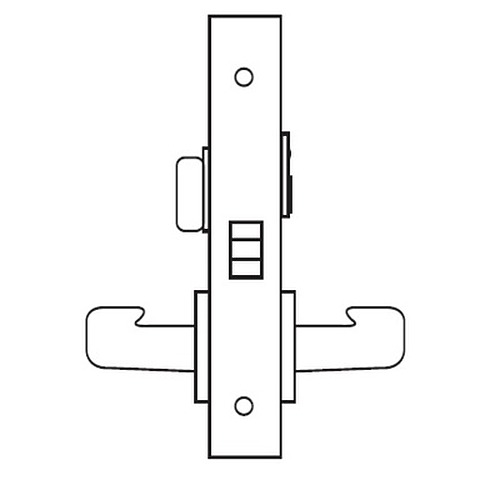

Sargent 8265LN

Privacy Function Complete Mortise Lock with Lever and Rose.

Quick Product Details

  • Complete Mortise Lock
  • Privacy Function
SKU: 8265LN

Price: $455.00 /each

Choose Options Below

This Sargent 8265LN mortise lockset includes a lever and an LN style rose that has a diameter of two inches. Operates with the privacy function (ANSI F22) for applications in hospitals, schools, universities, office buildings or government facilities where privacy is necessary. Designed with the highest quality structure and durability standards to ensure excellent lock performance and customer satisfaction.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $455.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Need Help Deciding?

Help Me Decide

  • Lever with LN style rose. Rose has a 2" diameter

Choose Finish:

Choose Handing:

Need Help Deciding?

Help Me Decide

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

Product at A Glance

Style Mortise lock
Function Privacy Function:
- Outside lever retracts the latch bolt, unless it is locked by thumbturn on the inside
- Inside lever retracts the latchbolt and unlocks the outside lever
- Thumbturn locks and unlocks the outside lever
- Closing the door will unlock the outside lever.
- Emergency release unlocks the outside lever
- ANSI F22
Design - Rose - LN style with 2" diameter
- Lever - select above
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Body 4-3/32" deep X 5-31/32" high
