Sargent 8270LW1

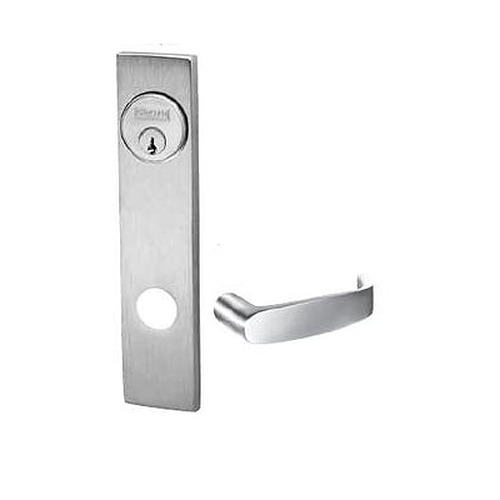

Electromechanical Fail Safe Mortise Lock with Lever and Decorative Plate

Quick Product Details

  • Complete Mortise Lock
  • Electromechanical Fail Safe Function
SKU: 8270LW1

Price: $649.00 /each

Choose Options Below

This Sargent 8270LW1 mortise lock package includes a B, L, or P style lever and an LW1 style decorative plate. Various finishes, cylinders, and voltage options are available to customize your lock to the specific needs of the application. This electromechanical lock satisfies industry standards for operating temperature, shock and fire hazard.

  • In Stock!
  • Order in the next 20 hours 20 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $649.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Need Help Deciding?

Help Me Decide

  • Lever with LW1 decorative plate.
  • Plate is 8" H x 2" W

Choose Finish:

Choose Cylinder:

Need Help Deciding?

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)



Choose Voltage:


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch
  • Fail Safe
  • Satisfies industry standards for operating temperature, shock and fire hazard

  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LW1 Decorative Plate
    • L lever with LW1 Decorative Plate
    • P lever with LW1 Decorative Plate
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Voltage:

    • 12VDC
    • 24VDC

Product at A Glance

  • Designed to handle single opening, stand alone applications or can be integrated into sophisticated access control systems
Style Mortise lock
Function - Electromechanical Fail Safe Function:
- Key outside retracts the latch bolt, unless the outside lever is locked
- Outside lever can only be locked by the solenoid
-Inside lever is always free
- Fail Safe security feature
Design - Escutcheon - LW1 style
- Lever - select above
Handing Handed - field reversible
Door Thickness 1-3/4"
Stile 4-3/4" minimum
Backset 2-3/4" standard
Decorative Plate 8" high by 2" wide
Body 4-3/32" deep X 5-31/32" high
Current .25A at 12VDC or .5A at 24VDC



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Electromechanical Fail Safe Mortise Lock with Lever and Decorative Plate
