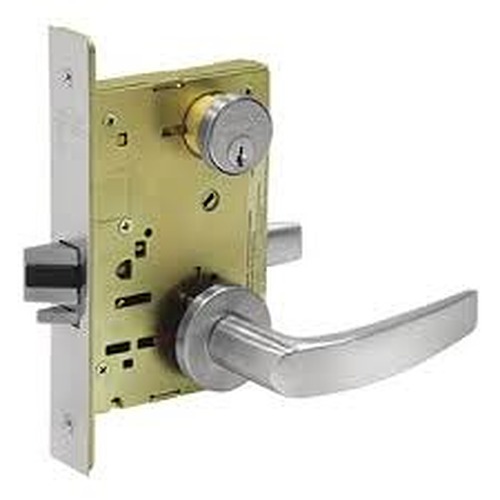

Sargent 8271LN

Electromechanical Fail Secure Mortise Lock with Lever and Rose

Quick Product Details

  • Complete Mortise Lock
  • Electromechanical Fail Secure Function
SKU: 8271LN

Price: $633.00 /each

Choose Options Below

This Sargent 8271LN fail secure, electromechanical mortise lock is designed to handle single opening, stand alone applications or can be readily integrated into sophisticated access control systems. The function of the 8271 includes a key in the outside that will retract the latchbolt unless the outside lever is locked by the solenoid. The inside lever remains free at all times.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $633.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Lever:

Need Help Deciding?

Help Me Decide

  • Lever with LN style rose. Rose has a 2" diameter

Choose Cylinder:

Need Help Deciding?

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Handing:

Need Help Deciding?

Help Me Decide

Choose Voltage:

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch
  • Fail secure
  • Satisfies industry standards for operating temperature, shock and fire hazard

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Finish:

  • Lever: info icon

    • B lever with LN Rose
    • L lever with LN Rose
    • P Lever with LN Rose
  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • LH Left Hand
    • RH Right Hand
    • LHR Left Hand Reverse
    • RHR Right Hand Reverse
  • Voltage:

    • 12VDC
    • 24VDC

Product at A Glance

  • Designed to handle single opening, stand alone applications or can be integrated into sophisticated access control systems
Style Mortise lock
Function Electromechanical Fail Secure Function:
- Key outside retracts the latch bolt unless the outside lever is locked
- Outside lever can only be locked by the solenoid
- Inside lever is always free
- Fail Secure security feature
Design - Rose - LN style with 2" diameter
- Lever - select above
Handing Handed - field reversible
Door Thickness 1-3/4"
Stile 4-3/4" minimum
Backset 2-3/4" standard
Body 4-3/32" deep X 5-31/32" high
Current .25A at 12VDC or .5A at 24VDC
