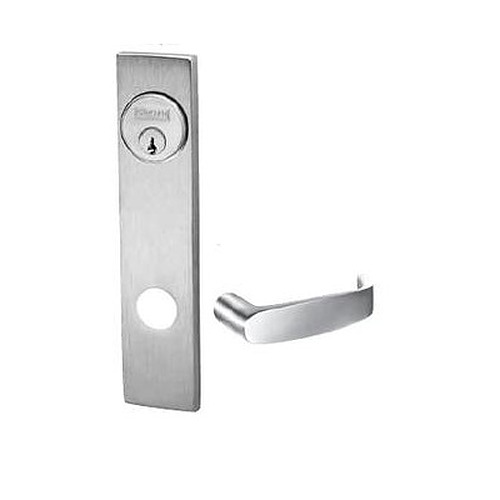

Sargent 8271LW1

Electromechanical Fail Secure Mortise Lock with Lever and Decorative Plate

Quick Product Details

  • Complete Mortise Lock
  • Electromechanical Fail Secure Function
Price: $750.00 /each

SKU: 8271LW1

Choose Options Below

This Sargent 8271LW1 is a complete electromechanical mortise lockset that is furnished with a lever and a decorative plate. It is designed with the fail secure security feature which will ensure that the door will remain locked in the event of a power loss. This lock is made to work well with single opening, stand alone doors or it can be simply integrated into a sophisticated access control system.

  • In Stock!
  • Order in the next 21 hours 46 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $750.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

B lever with LW1 Decorative Plate B lever with LW1 Decorative Plate
L lever with LW1 Decorative Plate L lever with LW1 Decorative Plate
P lever with LW1 Decorative Plate P lever with LW1 Decorative Plate

Help Me Decide

  • Lever with LW1 decorative plate.
  • Plate is 8" H x 2" W

Choose Finish:

US3 (Polished Brass) + $15.00 US3 (Polished Brass) +$15.00
US10B (Oil Rubbed Bronze) + $15.00 US10B (Oil Rubbed Bronze) +$15.00
US26 (Polished Chrome) + $15.00 US26 (Polished Chrome) +$15.00
US26D (Satin Chrome) US26D (Satin Chrome)

Choose Cylinder:

Need Help Deciding?
Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) Subtract -($39.60)
60-Prepped for Removable Core, core not included
70- Prepped for Small Format Interchangeable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Voltage:

12VDC
24VDC

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The hand of a door is always determined from the outside.



If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Overview

Suited for:
  • Commercial heavy duty applications
Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch
  • Fail secure
  • Satisfies industry standards for operating temperature, shock and fire hazard

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LW1 Decorative Plate
    • L lever with LW1 Decorative Plate
    • P lever with LW1 Decorative Plate
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Voltage:

    • 12VDC
    • 24VDC
  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • Designed to handle single opening, stand alone applications or can be integrated into sophisticated access control systems
Style Mortise lock
Function Electromechanical Fail Secure Function:
- Key outside retracts the latch bolt
- Outside lever can only be locked by the solenoid
- Inside lever is always free
- Fail Secure security feature
Design - Escutcheon - LW1 style
- Lever - select above
Handing Handed - field reversible
Door Thickness 1-3/4"
Stile 4-3/4" minimum
Decorative Plate 8" high X 2" wide
Backset 2-3/4" standard
Body 4-3/32" deep X 5-31/32" high
Current .25A at 12VDC or .5A at 24VDC
