Sargent 866PTB

Pull and Thumbpiece trim for 8700/8800/8900 Exit devices

Quick Product Details

  • Pull and Thumbpiece Trim
  • 63 Function
  • Used with: 8700/8800/8900 series exit devices
Price: $330.00 /each

SKU: 866PTB

Choose Options Below

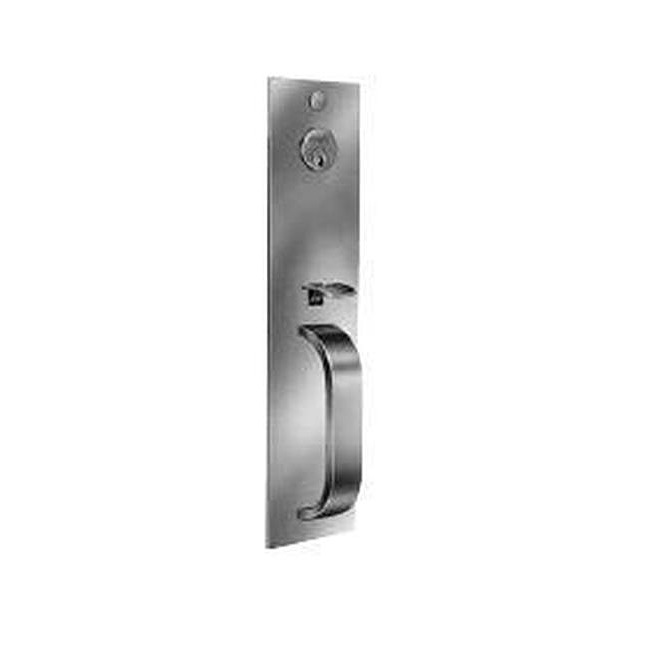

This Sargent 866PTB is a pull and thumbpiece trim for use with Sargent 8700/8800 and 8900 series exit devices. A key will lock and unlock the thumbpiece. This product is handed and field reversible and it is available with various finishes.

  • Stock Item
  • Order in the next 17 hours 59 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $330.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse (LHR)
Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder:

LA-Keyway 6 Pin Cylinder Keyed Different
No Cylinder Needed (LC) +$69.00

Help Me Decide

LA-KD 6 pin Rim cylinder LA cylinder keyed different.  The LA cylinder is the Sargent standard cylinder

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)

Overview


Quality and Safety:
  • 5 year limited warranty

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
  • Cylinder: info icon

    • LA-Keyway 6 Pin Cylinder Keyed Different
    • No Cylinder Needed (LC)
  • Finish:

Product at A Glance

Style Pull and Thumbpiece Trim
Used With 8700/8800/8900 series exit devices
Function 63 Function:
- Key locks and unlocks the thumbpiece
- ANSI 105
Handing Handed - field reversible
Door Thickness 1-3/4"
