Sargent 8910

Special Order Mortise Lock Exit Device

Quick Product Details

Mortise Rim Exit Device
Exit-Only Function

Get a Quote

Special Order non-stock item Requires 6 week lead time

SKU: 8910

Choose Options Below

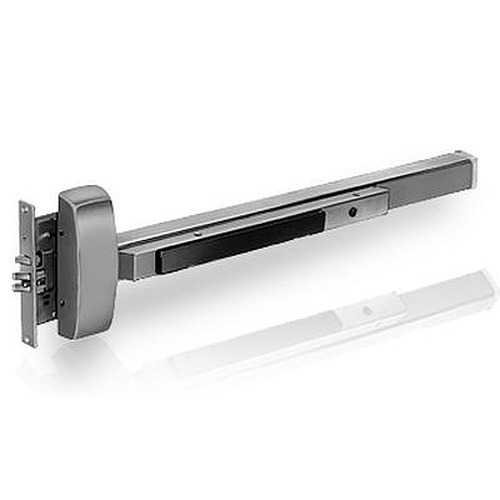

This Sargent 8910 is a mortise lock exit device that functions as an exit only device without a lock on the outside. It is designed for standard width stile applications on metal and wooden doors. It is equipped with concealed single point guard latching for additional security.

Special Order
FREE Shipping

Have a question about this product?

Get a Quote

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Oli Rubbed Bronze (US10B) +$115.00

Satin Stainless Steel (US32D)

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Rail Size:

36" Rail (F) 33" to 36"

48" Rail (G) 43" to 48"

Help Me Decide

36" Rail (F) fits doors 33" to 36" wide
48" Rail (G )fits doors 43" to 48" wide

1 Choose Finish:
2 Choose Handing:
3 Choose Rail Size:
Qty.

Get a Quote
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Non stock factory order with 6 week lead time
Quality and Safety:

Meets ANSI/BHMA A156.3 2008 Grade 1 standards
UL listed for panic
5 year limited warranty

Available Options: Choose Options Above

Finish:
- Oli Rubbed Bronze (US10B)
- Satin Stainless Steel (US32D)
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR
Rail Size:
Rail Size
36" Rail (F) fits doors 33" to 36" wide

48" Rail (G )fits doors 43" to 48" wide
- 36" Rail (F) 33" to 36"
- 48" Rail (G) 43" to 48"

Product at A Glance

Mortise exit device with exit only function. No entry from outside.
Designed for standard width stile applications on metal and wood doors
Hex key dogging is standard, Cylinder dogging is optional
The device can be cut to size within the field
Has concealed single point guard latching for additional security
Includes wood and machine screws

Style	Mortise Exit Device
Function	Exit only: - No outside operation - ANSI 02
Handing	Handed
Door Thickness	1-3/4"
Stile	4-1/2" minimum
Latch	Brass nickel plated, anti-friction
Throw	3/4"
Deadlatch	Brass, sliding type
Strike	C908 - standard, black nylon coated
Center Case Dimensions	8-3/8" X 2-5/8"
Device Centerline	From finished floor - 41"
Pushbar Projection	- Neutral - 3" - Depressed - 2-1/8"

More Info

Panic bars or exit devices are required by the law for fire safety. They provide a quick and safe exit from an area that is in danger to safety. Panic bars are designed to prevent fire casualties caused by a lack of knowledge in how to open a door or a lack of equipment to unlock it. Exit devices will release the when the bar is depressed by body weight.
