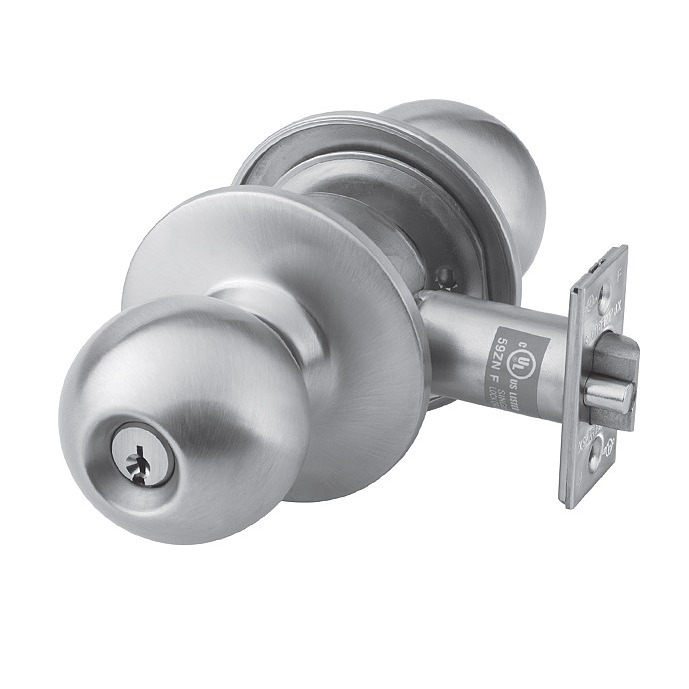

Sargent 8XG05-HA

Special Order Heavy Duty Entrance or Office Knob Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time


Choose Options Below

Sargent 8XG05 keyed entrance/office function knob lock, button inside pushed-in & turned only, locks outside knob until released manually. Knob inside always retracts latchbolt. With it's heavy duty construction and interlocking latch and aligning tubes the Sargent 8G05 entrance function commercial knob lock meets the most demanding needs for high traffic commercial or industrial applications.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US32D-Satin Stainless Steel US32D-Satin Stainless Steel
US3- Polished Brass US3- Polished Brass
10BE-Dark Bronze Equivalent 10BE-Dark Bronze Equivalent

Choose Cylinder:

LA Keyway- 6 Pin Cylinder-Keyed Different
No Cylinder-(LC)


Special order non stock item with 2 week lead time.
  • Keyed entrance or office function.
  • ANSI - Meets ANSI A156.2 Series 4000 - Grade 1.
  •  For doors 1-3/8" thick adjustable to 2".
  • Cylinder-Sargent 6 pin LA cylinder keyed different or less cylinder.
  • Backset - 2-3/4". The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Latch-2-1/4" x 1-1/8" Front, 1/2" throw.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip.

Available Options: Choose Options Above

More Info

  • 05 Entrance or Office
  • Deadlocking latch
  • Key outside retracts latch always
  • Turn button released by key outside or knob inside.
  • Turn button must be released manually.
  • Knob inside always retracts latchbolt
  • ANSI F81
  • Minimum Stile 4-1/4"
  • L style rose with B style knob
  • UL Listed to U.S.A. and Canadian safety standards.
  •  Listed for 3 Hour Doors
