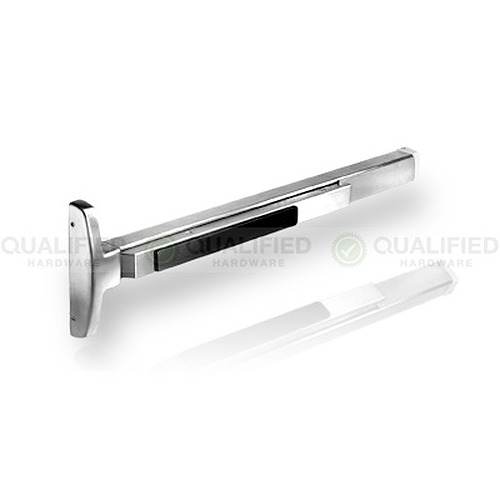

Sargent AD8410F-32D

• Sargent AD8410, exit only narrow style concealed vertical rod exit device. Designed for narrow stile applications such as full glass doors
• Exit only function, no outside operation.
• F rail for 33" to 36" door widths.
• 1-3/4"minimum stile width required.
• Hex key dogging standard.
• The AD option - prepped for aluminum doors .
• This exit device will be supplied for a 3ft x 8ft door.
• Satin stainless steel finish-32D

Available Options: Choose Options Above

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR
