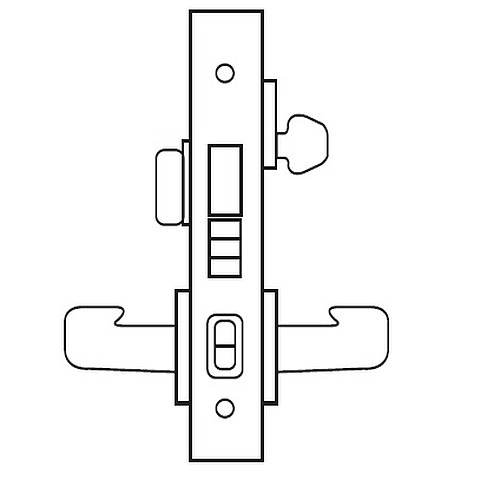

Sargent BP-8245

Dormitory Mortise Lock Body

Price: $363.00 /each

SKU: BP-8245

Choose Options Below

The Sargent 8245 Dormitory or Exit function mortise lock body, Key outside retracts both latch and deadbolt, lever outside remains locked. Lever outside is locked by toggle or projecting deadbolt. Lever outside is unlocked by toggle only. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools / Universities, Office Buildings and Government Facilities.

  • Stock Item
  • Order in the next 30 hours 21 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $363.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Chrome (US26D) Satin Chrome (US26D)


  • Lockbodies include outside front, strike, and mounting screws.
  • Backset- 2-3⁄4" only
  • For doors 1-3⁄4" thick standard
  • Trim not included
  • Handing - field reversible-shipped RH standard

Available Options: Choose Options Above

More Info

  • ANSI F12, 45 Dormitory or Exit - 8245
  • Key outside or thumb turn inside retracts and projects deadbolt
  • Key outside retracts both latchbolt and deadbolt,
    lever/knob outside remains locked
  • Lever/Knob outside is locked by toggle or projecting deadbolt
  • Lever/Knob inside (when deadbolt is projected) retracts latchbolt
    and deadbolt simultaneously, and lever/knob outside remains locked
  • 4-1/2" minimum stile, 4-3/4" minimum stile for electrical function locks
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4", ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" in 2"
  • Deadbolt - one-piece hardened stainless steel, with 1" projection
  • Latchbolt - stainless steel 3⁄4" projection one-piece, anti-friction reversible
  • Requires a 1-1/8" Mortise cylinder, not included



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product



SARGENT 8200 Mortise Installation thumbnail

SARGENT 8200 Mortise Installation

SARGENT Mortise Lock Handing Change thumbnail

SARGENT Mortise Lock Handing Change
