Sargent HPU65ALP-32D

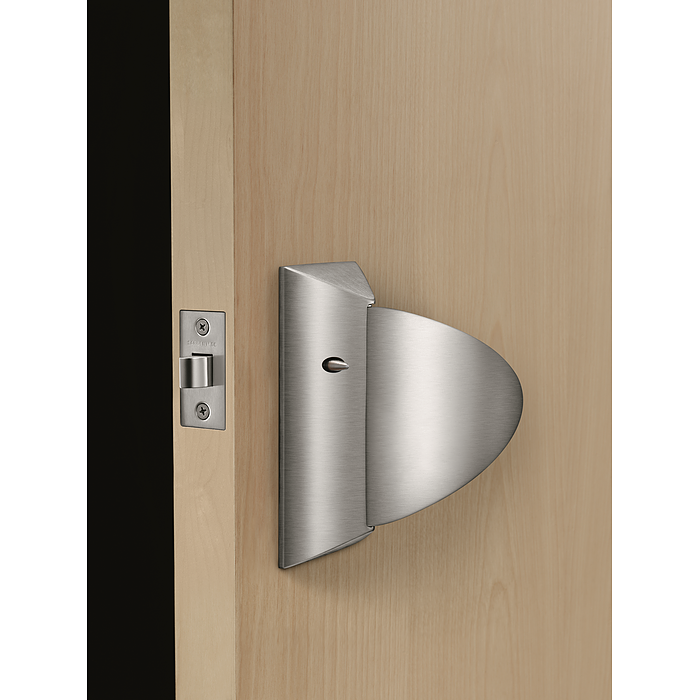

Special Order Ligature Resistant HP Series Push/Pull Privacy Lock

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: HPU65ALP-32D

Choose Options Below

Touch less,the paddle shape and location create a comfortable target for door activation without using hands. This is a non stock item that ships direct from Sargent. . The HP Bored Lock HPU65-ALP privacy function with ALP push/pull trim provides an aesthetically pleasing alternative to standard push/pull products. Ease of operation allows its use in many environments, including healthcare and education.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose MicroShield(R):

SG MicroShield-antimicrobial coating + $26.00 SG MicroShield-antimicrobial coating +$26.00
No MicroShield coating No MicroShield coating

Help Me Decide

  • MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
  • Applications: Anywhere there is need for a clean environment , hospitals, laboratories, schools, medical centers, daycare, food processing.
  • MicroShield® coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.
  • As an integral part of the finish coating, MicroShield® lasts for the life of the hardware.
  • Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.

Choose Backset:

5" Standard Backset
2-3/4" Backset
7" Backset

Choose Handing:

Need Help Deciding?
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview

Non stock factory order with 4 week lead time
  • Privacy function-vertical orientation required.
  • Inside paddle always retracts latch.
  • Outside paddle retracts latch, except when locked by inside push button.
  • Closing door unlocks outside paddle.
  • Includes emergency release.
  • Closing door unlocks outside paddle.
  • Shown with optional Push/Pull Paddle Identification.
  • Satin stainless steel finish, US32D.
  • Door thickness-1-3/4"-1-7/8"
  • Available in 2-3/4", 5" or 7" backsets.
  • UL Listed for use on fire doors.
  • Strike, 2-3/4" curved lip strike # 800.
  • Non handed.



Available Options: Choose Options Above

  • MicroShield(R): info icon

    • SG MicroShield-antimicrobial coating
    • No MicroShield coating
  • Backset:

    • 5" Standard Backset
    • 2-3/4" Backset
    • 7" Backset
  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Through-bolted trim for stability.
  • UL Fire Rating standard.
  • Covers and paddles are cast stainless steel or brass.
  • Available in many other finishes.Contact us for pricing.
  • ANSI/BHMA Grade 1
