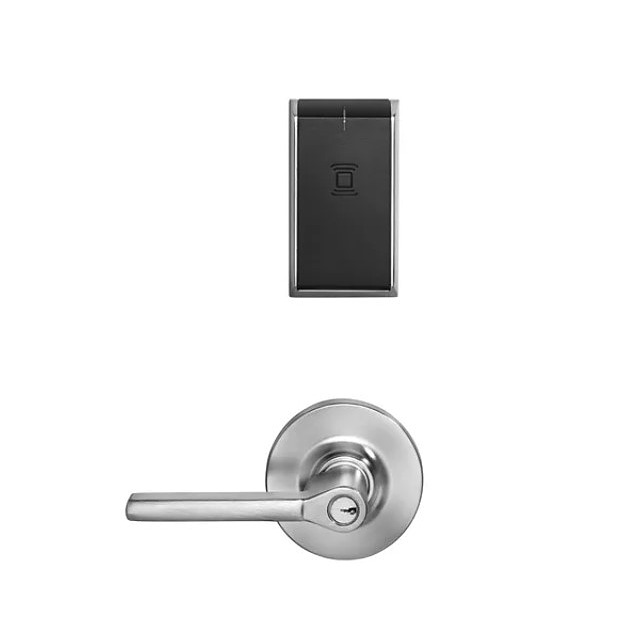

Sargent LRK-IN120-10XG77-LL-626

Special Order Interconnected Lock Retrofit Kit

Quick Product Details

  • Retrofit Kit for Standalone access control cylindrical lock
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: LRK-IN120-10XG77-LL-626

Choose Options Below

The Sargent Special Order Interconnected Lock Retrofit Kit is made to retrofit existing IN120 locks with the new 10X line of lock bodies and levers. Includes full working trim and electronic lock body. Does not include card reader. This product can be installed in existing systems only and does not require that the installer be a Preferred Integrator.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

Satin Chrome-US26D Satin Chrome-US26D Satin Chrome-US26D


Special order item with 6-8 week led time.
  • Includes 10XG77 electronic cylindrical lock body
  • With cylinder override-LA keyway.
  • With "L" style lever and 'L" rose.
  • For 1-3/4" door standard.
  • 2-3/4"  backset standard.
  • ANSI Grade 1 mechanical locking mechanism.
  • Made for existing IN120 locks
  • Does not require installers to be a part of the Preferred Integrators program

Available Options: Choose Options Above

Product at A Glance

  • Lever inside always retracts latchbolt.
  •  Key outside retracts latchbolt.
  •  Outside lever rigid except when in passage mode or valid user code entered.
