Sargent M56A

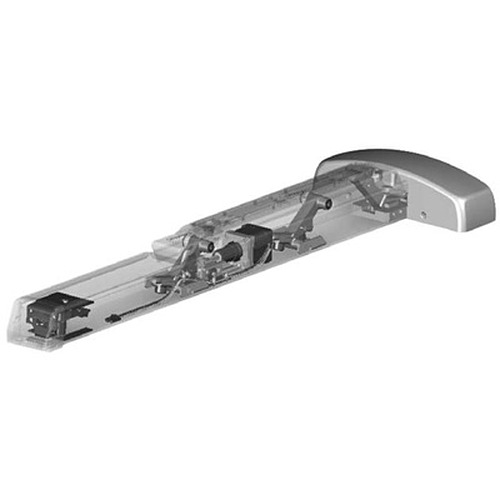

Electric Latch Retraction Motor Assembly Kit

Price: $597.00 /each

SKU: M56A

Choose Options Below

Electric Latch Retraction Motor Assembly Kit

  • Stock Item
  • Order in the next 17 hours 48 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $597.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Door Width:

M56AF-For Doors 33-36"
M56AG - For Doors 43-48"

Overview

  • Motor driven electric retraction for smooth precise operation.
  • Retrofits standard mechanical rail.
  • M56AF - for doors 33-36", M56AG - for doors 43-48".
  • Retrofit Kits can only be added to 80 Series exit devices manufactured after 2006
    & P series exit device.not available on FM8700 Series exit devices.

Available Options: Choose Options Above

  • Door Width:

    • M56AF-For Doors 33-36"
    • M56AG - For Doors 43-48"

Product at A Glance

  • Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself
  • Digital retraction timer (0-20 seconds; factory setting is 5 seconds.
  • Can be used for continuous and intermittent use.
  • Power Requirements: 24VDC regulated/filtered power supply.
  • Current draw: .6A during retraction and .25A maintained in dogged hold position.
  • Requires 1A at 24VDC regulated/filtered power supply.
