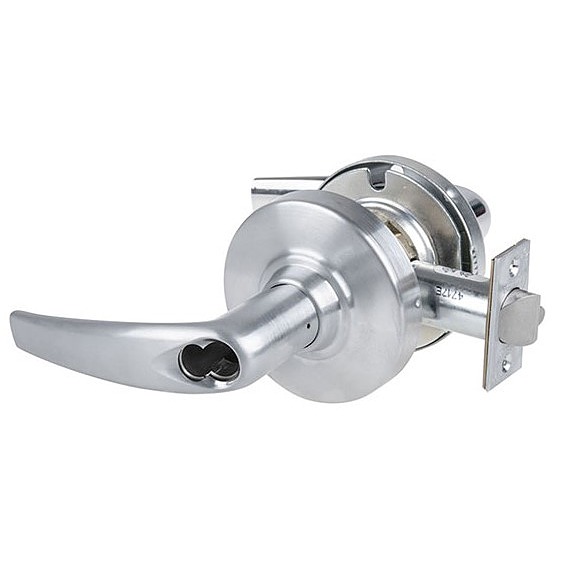

Schlage ALX50J-ATH-626

Special Order Standard Duty Large Format Interchangeable Core Entrance/Office Lever

Quick Product Details

  • For Commercial Interior and Exterior Doors
  • Standard Duty
  • Entrance/Office Function
Price: $166.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: ALX50J-ATH-626

Choose Options Below

This Schlage ALX50J-ATH-626 is a large format interchangeable core entrance/office function lever lock set. The interchangeable core lock set allows for immediate rekeying of the door, by simply using the special control key to replace the core in seconds. (Core is not included).

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $166.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Cores:

Need Help Deciding? QH chevron down

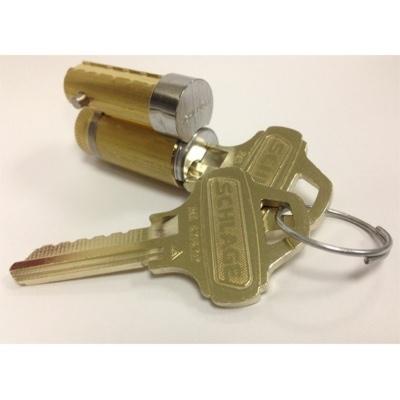

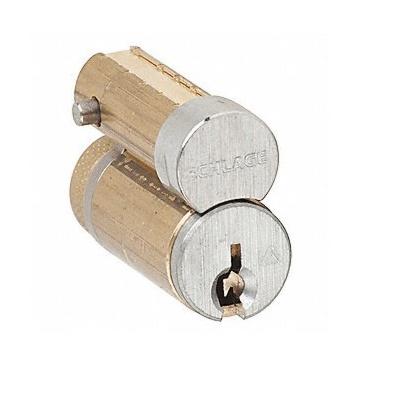

Classic C -1 Bitted + $52.00 Classic C -1 Bitted +$52.00
Everest C123 - 1-Bitted + $52.00 Everest C123 - 1-Bitted +$52.00
S123 Keyed alike + $61.00 S123 Keyed alike +$61.00
S123 Keyed Different + $61.00 S123 Keyed Different +$61.00
Classic C Construction Core 606 Finish Only  (SCTEMP) + $61.00 Classic C Construction Core 606 Finish Only (SCTEMP) +$61.00
No IC Core Needed

Help Me Decide

1 bitted cylinders are supplied with two key blanks that are uncut. They can be keyed locally to an existing key system. Construction cores and S123 cores are supplied with two operating keys per core and one control key per order. The construction cores are keyed to a common key and should not be used for permanent security. Temporary Construction Cores are not subject to our standard return policy and Cannot be Returned.

Overview

Special Order Non-Stock Item with a 6-week lead time

Suited for:
  • Standard duty commercial exterior and interior applications with medium to high traffic

Quality and Safe
  • Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.
  • UL listed for 3 hour fire door.
  • Meets ADA requirements, Americans with Disabilities Act requirements.
  • 10-year limited warranty.

Available Options: Choose Options Above

  • IC Cores: info icon

    • Classic C -1 Bitted
    • Everest C123 - 1-Bitted
    • S123 Keyed alike
    • S123 Keyed Different
    • Classic C Construction Core 606 Finish Only (SCTEMP)
    • No IC Core Needed

Product at A Glance

  • Interchangeable core locksets allow for immediate rekeying of the door, by using the special control key to replace the core in seconds.
  • Core is not included
Style Lever lock, Athens ATH Style Lever
Cylinder Schlage Large Format LFIC, IC core is Not Included
Grade Standard duty
Function Entrance/Office Function:
- Pushing in the push button on the inside lever locks the outside lever
- When the push button is pushed in, a key is necessary to unlock the outside lever until the inside lever is rotated
- Inside lever is always free
- ANSI 109
Handing Non-handed - easily reversible
Strike - Square corner
- 1-1/4" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
- 1" housing
Throw 1/2"
Door Thickness Adjustable from 1-3/8" to 1-3/4"
Lever Style Athens (ATH)
Finish Satin chrome (626)
Backset 2-3/4"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

How to Install the Schlage AL Lock thumbnail

How to Install the Schlage AL Lock
