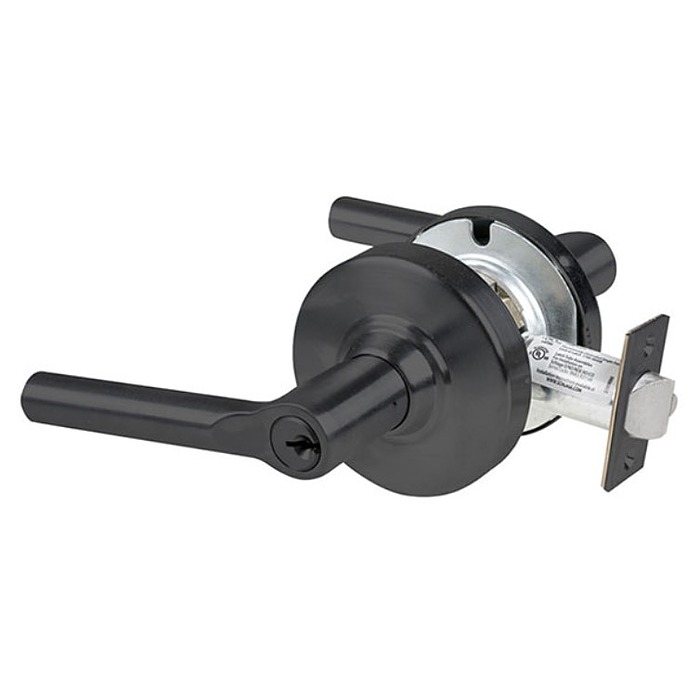

Schlage ALX50P-BRW-622

Special Order Standard Duty Entrance/Office Lever

Quick Product Details

  • For Commercial Interior and Exterior Doors
  • Standard Duty
  • Entrance/Office Function
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ALX50P-BRW-622

Choose Options Below

This Schlage ALX50P-BRW-622 is a conventional core entrance/office function lever lock set. Keyed in Schlage S123 unless otherwise requested.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Cores:

Need Help Deciding? QH chevron down
S123 Keyed alike S123 Keyed alike
S123 Keyed Different S123 Keyed Different
Everest C123 - Keyed Alike
Classic C Keyed Different Classic C Keyed Different
No IC Core Needed

Help Me Decide

1 bitted cylinders are supplied with two key blanks that are uncut. They can be keyed locally to an existing key system. Construction cores and S123 cores are supplied with two operating keys per core and one control key per order. The construction cores are keyed to a common key and should not be used for permanent security. Temporary Construction Cores are not subject to our standard return policy and Cannot be Returned.

Overview

Special Order Non-Stock Item with a 6-week lead time

Suited for:
  • Standard duty commercial exterior and interior applications with medium to high traffic

Quality and Safe
  • Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.
  • UL listed for 3 hour fire door.
  • Meets ADA requirements, Americans with Disabilities Act requirements.
  • 10-year limited warranty.

Available Options: Choose Options Above

  • IC Cores: info icon

    • S123 Keyed alike
    • S123 Keyed Different
    • Everest C123 - Keyed Alike
    • Classic C Keyed Different
    • No IC Core Needed

Product at A Glance

Style Lever lock, Athens ATH Style Lever
Cylinder Schlage Conventional Core, Keyed different, S123 Keyway unless otherwise specified
Grade Standard duty
Function Entrance/Office Function:
- Pushing in the push button on the inside lever locks the outside lever
- When the push button is pushed in, a key is necessary to unlock the outside lever until the inside lever is rotated
- Inside lever is always free
- ANSI 109
Handing Non-handed - easily reversible
Strike - Square corner
- 1-1/4" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
- 1" housing
Throw 1/2"
Door Thickness Adjustable from 1-3/8" to 1-3/4"
Lever Style Broadway (BRW)
Finish Matte Black (622)
Backset 2-3/4"
