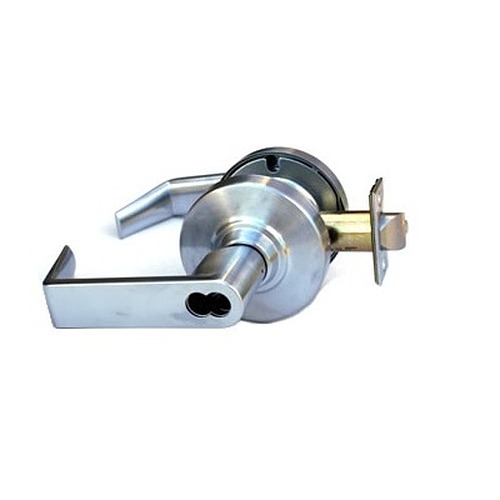

Schlage ALX53B-RHO-626

Special Order Standard Duty Small Format Interchangeable Core Entry Lever

Quick Product Details

  • Lever Set
  • For Commercial Interior and Exterior Doors
  • Standard Duty
  • Entrance Function
  • Small Format SFIC Interchangeable core lock
  • IC Core Not Included
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ALX53B-RHO-626

This Schlage ALX53B-RHO-626 is a small format interchangeable core entrance function lever lock set. The interchangeable core lock set allows for immediate rekeying of the door, by simply using the special control key to replace the core in seconds. (Core is not included).

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6 week lead time
Suited for:
  • Standard duty commercial exterior and interior applications with medium to high traffic

Quality and Safe
  • Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.
  • UL listed for 3 hour fire door.
  • Meets ADA requirements, Americans with Disabilities Act requirements.
  • 10-year limited warranty.

Product at A Glance

  • Interchangeable core locksets allow for immediate rekeying of the door, by using the special control key to replace the core in seconds.
  • Core is not included
Style Lever lock, Rhodes RHO Style Lever
Cylinder Schlage Small Format SFIC Best Type
Grade Standard duty
Function Entrance Function:
- Pushing in and turning the push button on the inside lever locks the outside lever thereby making a key necessary to unlock it until the push button is manually unlocked
- When the push button is pushed in only, a key is necessary to unlock the outside lever until the inside lever is rotated
- Inside lever is always free
- ANSI 109
Handing Non-handed - easily reversible
Strike - Square corner
- 1-1/4" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
- 1" housing
Throw 1/2"
Door Thickness Adjustable from 1-3/8" to 1-3/4"
Lever Style Rhodes (RHO)
Finish Satin chrome (626)
Backset 2-3/4"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

How to Install the Schlage AL Lock thumbnail

How to Install the Schlage AL Lock
