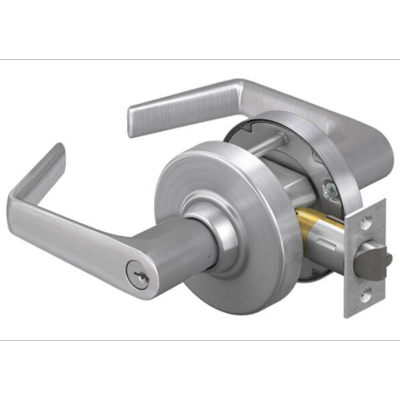

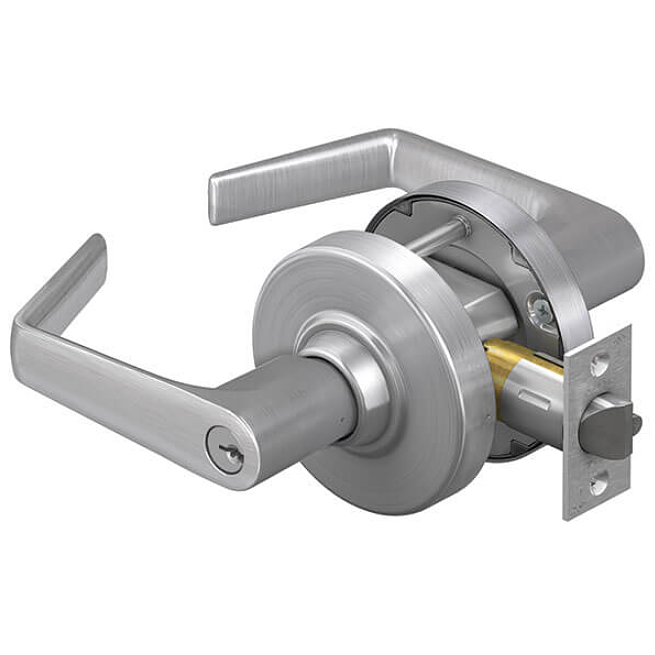

Schlage ALX53P6-SAT-626

Special Order Standard Duty Entry Lever, Saturn Lever, With 6 Pin-S123 Standard Cylinder

Quick Product Details

  • Lever Set
  • For Commercial Exterior and Interior Doors
  • Standard Duty
  • Entrance Function
  • With 6 Pin 020-622/626-S123-KD
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ALX53P6-SAT-626

Special ORder Schlage ALX53P6-SAT-626 lever lock operates as an entrance function lock. It is best suited for applications with medium to high traffic flow such as banks, interior office doors, retail spaces and hotel guest areas. Special Schlage Order Standard Duty Entry Lever, Saturn Lever, With 6 Pin-S123 Standard Cylinder

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview


Suited for:
  • Standard duty commercial exterior and interior applications with medium to high traffic

Quality and Safety:
  • Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.
  • UL listed for 3 hour fire door
  • Meets ADA requirements, Americans with Disabilities Act requirements.
  • 10-year limited warranty.

Product at A Glance

Style Lever lock, Saturn Style Lever
Finish 626 Satin Chrome or 622 Matte Black
Grade Standard duty
Function Entrance Function:
- Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
- Push-button locking, Push-button locks the outside lever until it is unlocked by key or by turning the inside lever
- Inside knob is always free
- ANSI 109
Handing Non-handed - easily reversible
Cylinder 6 Pin 020-622-S123-KD-622 Keyed Different-Black
Strike - Square corner
- 1-1/8" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
- 1" housing
Throw 1/2"
Door Thickness Adjustable from 1-3/8" to 1-3/4"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
