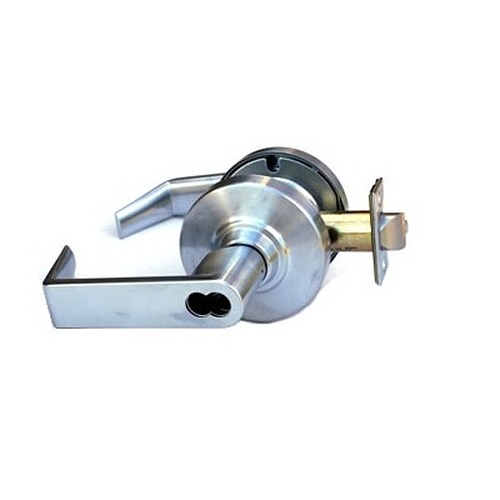

Schlage ALX80B-RHO-626

Special Order Standard Duty Small Format Interchangeable Core Storeroom Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ALX80B-RHO-626

Choose Options Below

Dependable performance for exterior and interior doors in commercial applications. The Schlage ALX80B Interchangeable Core small format storeroom lever is best for buildings with medium traffic flow.Schlage interchangeable core (SFIC) locksets allow immediate rekeying at the door simply by using the special control key to replace the core in seconds

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Core:

1C7A1-7 pin Best Uncombinated IC core + $32.00 1C7A1-7 pin Best Uncombinated IC core +$32.00
Keyed Core,ME33-6B010 6 Pin + $34.00 Keyed Core,ME33-6B010 6 Pin +$34.00
No IC Core Needed

Help Me Decide

  • The Best Uncombinated 7 pin IC core 1C7A1-7 must be keyed by a locksmith. No keys, key blanks or control keys are included.
  • Arrow brand Small Format Keyed 6 pin IC core, is keyed different with 2 keys and includes a control key which is required to install and remove IC core.


Overview

Special order non stock special order with 6 week lead time
  • Interchangeable Core storeroom function (small format, Best type), locksets allow immediate rekeying at the door
    simply by using the special control key to replace the core in seconds
  • Rhodes style lever in satin chrome finish.
  • Core not included.
  • Outside lever is always locked.
  • Entrance by key only.
  • Inside lever is always unlocked
  • Inside lever always free for immediate exit.
  • Satin chrome finish
  • Standard Duty grade 2 commercial lever.
  • Door thickness- 1-3/8" to 1-3/4" standard.
  • Backset- 2-3⁄4˝ standard.
  • Strike- 1-1/4" x 4-7/8", ANSI, Square corner.
  • Complies with ADA accessibility guidelines.

Available Options: Choose Options Above

  • IC Core: info icon

    • 1C7A1-7 pin Best Uncombinated IC core
    • Keyed Core,ME33-6B010 6 Pin
    • No IC Core Needed

More Info

  • ANSI A156.2, 1996, Series 4000, Grade 2, UL Listed for 3-hour fire door.
  • Patented door range adjuster allows quick and easy adjustment of the ALX-Series for 1-3/8" – 1-3/4" thick doors.
  • Latch-1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw for 2-3/4" backset standard.
  • Non handed, easily reversible.
