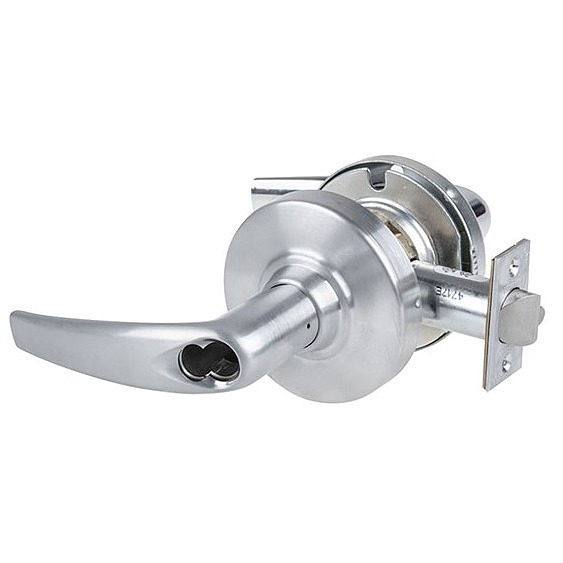

Schlage ALX80J-ATH-626

Special Order Standard Duty Large Format Interchangeable Core Storeroom Lever

Price: $166.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: ALX80J-ATH-626

Choose Options Below

Dependable performance for exterior and interior doors in commercial applications. The Schlage ALX80J Large Format Interchangeable Core storeroom lever is best for buildings with medium traffic flow.Schlage Large Format interchangeable core (FSIC) locksets allow immediate rekeying at the door simply by using the special control key to replace the core in seconds

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $166.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose IC Cores:

Need Help Deciding? QH chevron down
Classic C -1 Bitted + $52.00 Classic C -1 Bitted +$52.00
Everest C123 - 1-Bitted + $52.00 Everest C123 - 1-Bitted +$52.00
S123 Keyed alike + $61.00 S123 Keyed alike +$61.00
S123 Keyed Different + $61.00 S123 Keyed Different +$61.00
Classic C Construction Core 606 Finish Only  (SCTEMP) + $61.00 Classic C Construction Core 606 Finish Only (SCTEMP) +$61.00
No IC Core Needed

Help Me Decide

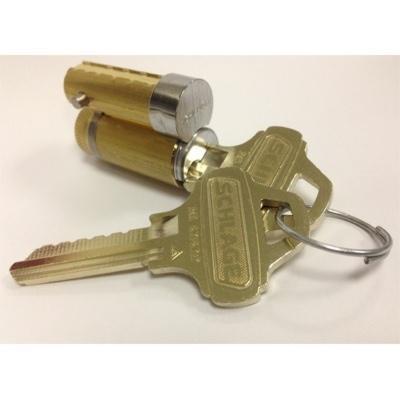

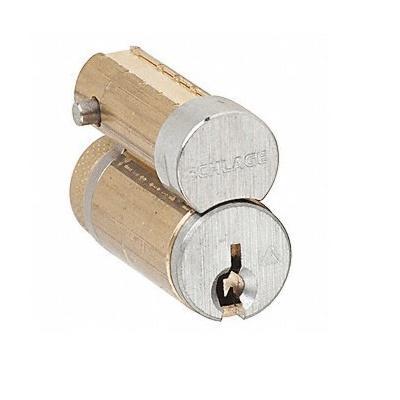

1 bitted cylinders are supplied with two key blanks that are uncut. They can be keyed locally to an existing key system. Construction cores and S123 cores are supplied with two operating keys per core and one control key per order. The construction cores are keyed to a common key and should not be used for permanent security. Temporary Construction Cores are not subject to our standard return policy and Cannot be Returned.

Overview

Special order non stock special order with 6 week lead time
  • Interchangeable Core storeroom function (Large Format Interchangeable Core, Schlage), locksets allow immediate rekeying at the door
    simply by using the special control key to replace the core in seconds
  • Athens style lever in satin chrome finish.
  • Core not included.
  • Outside lever is always locked.
  • Entrance by key only.
  • Inside lever is always unlocked
  • Inside lever always free for immediate exit.
  • Satin chrome finish
  • Standard Duty grade 2 commercial lever.
  • Door thickness- 1-3/8" to 1-3/4" standard.
  • Backset- 2-3⁄4˝ standard.
  • Strike- 1-1/4" x 4-7/8", ANSI, Square corner.
  • Complies with ADA accessibility guidelines.

Available Options: Choose Options Above

  • IC Cores: info icon

    • Classic C -1 Bitted
    • Everest C123 - 1-Bitted
    • S123 Keyed alike
    • S123 Keyed Different
    • Classic C Construction Core 606 Finish Only (SCTEMP)
    • No IC Core Needed

More Info

  • ANSI A156.2, 1996, Series 4000, Grade 2, UL Listed for 3-hour fire door.
  • Patented door range adjuster allows quick and easy adjustment of the ALX-Series for 1-3/8" – 1-3/4" thick doors.
  • Latch-1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" throw for 2-3/4" backset standard.
  • Non handed, easily reversible.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

How to Install the Schlage AL Lock thumbnail

How to Install the Schlage AL Lock
