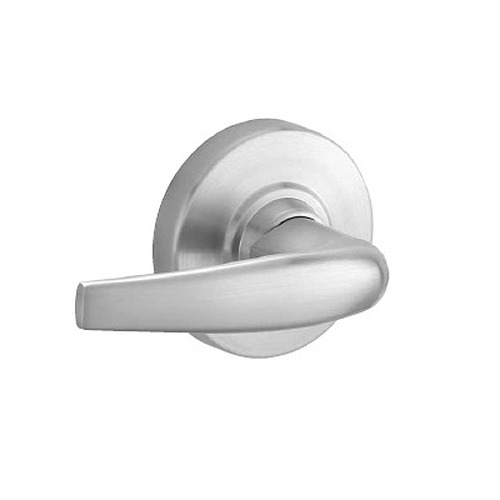

Schlage ALX80J-ATH

Standard Duty Storeroom Lever with Athens Lever

Quick Product Details

  • Lever Set
  • For commercial exterior and interior doors
  • Standard Duty
  • Storeroom Function
Price: $166.00 /each

SKU: ALX80J-ATH

Choose Options Below

This Schlage ALX80-ATH 626 lever set is a storeroom function lock. This product is non-handed and easily reversible. Supplied only with Athens style lever with the Satin Chrome or Matt Black finish

  • Stock Item
  • Order in the next 2 hours 37 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $166.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

622 Matte Black + $5.00 622 Matte Black +$5.00
626 Satin Chrome 626 Satin Chrome

Choose IC keyways:

Need Help Deciding? QH chevron down
Classic C -1 Bitted + $52.00 Classic C -1 Bitted +$52.00
Everest C123 - 1-Bitted + $52.00 Everest C123 - 1-Bitted +$52.00
Everest C145 - 1-Bitted + $52.00 Everest C145 - 1-Bitted +$52.00
S123 Keyed alike + $61.00 S123 Keyed alike +$61.00
S123 Keyed Different + $61.00 S123 Keyed Different +$61.00
Classic C Construction Core 606 Finish Only  (SCTEMP) + $61.00 Classic C Construction Core 606 Finish Only (SCTEMP) +$61.00
No IC Core Needed

Help Me Decide

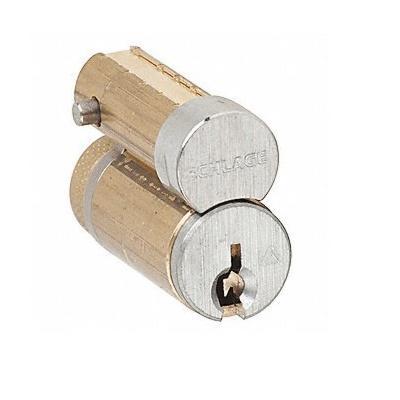

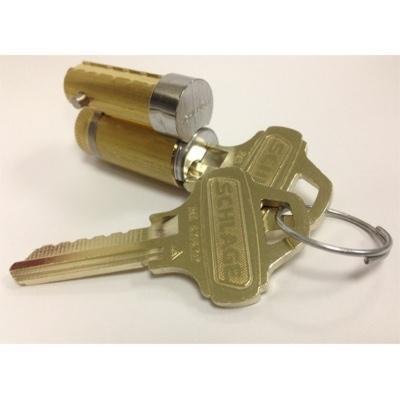

1 bitted cylinders are supplied with two key blanks that are uncut. They can be keyed locally to an existing key system. Construction cores and S123 cores are supplied with two operating keys per core and one control key per order. The construction cores are keyed to a common key and should not be used for permanent security. Temporary Construction Cores are not subject to our standard return policy and Cannot be Returned.

Overview


Suited for:
  • Standard duty commercial exterior and interior applications with medium to high traffic

Quality and Safety:
  • Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability.
  • UL listed for 3 hour fire door
  • Meets ADA requirements, Americans with Disabilities Act requirements
  • 10 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • IC keyways: info icon

    • Classic C -1 Bitted
    • Everest C123 - 1-Bitted
    • Everest C145 - 1-Bitted
    • S123 Keyed alike
    • S123 Keyed Different
    • Classic C Construction Core 606 Finish Only (SCTEMP)
    • No IC Core Needed

Product at A Glance

Style Lever Lock, Athens ATH Style Lever
Cylinder Large format Schlage IC Core LFIC, not included
Grade Standard duty
Function Storeroom Function:
-Outside lever always locked.
- Inside lever is always free for immediate egress
Handing Non-handed - easily reversible
Strike - Square corner
- 1-1/8" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- Square corner faceplate
- 1" housing
Throw 1/2"
Door Thickness Adjustable from 1-3/8" to 1-3/4"
Lever Style Athens ATH
Finish Satin chrome (626)

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Videos

How to Install the Schlage AL Lock thumbnail

How to Install the Schlage AL Lock
