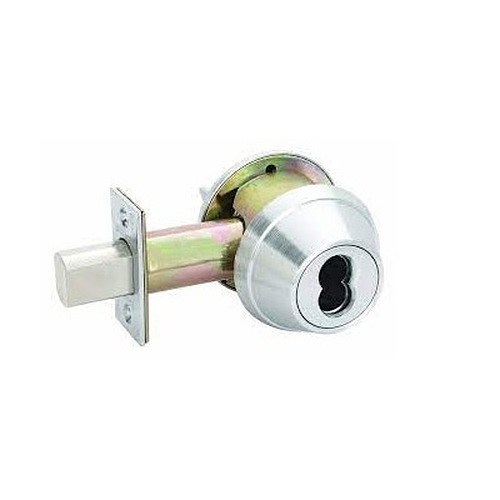

Schlage B660BD-12-296-626

Special Order Heavy Duty Single Cylinder Deadbolt Prepped for Small Format IC Core

Quick Product Details

  • Deadbolt
  • For wood or hollow metal exterior entrance doors
  • Heavy Duty
  • Single Cylinder
  • Prepped for small format Best type IC core. Core not included
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: B660BD-12-296-626

This Schlage B660BD-626 is a heavy duty single cylinder deadbolt prepped for small format Best type IC core. IC core not included.Operable via key on the outside or large thumbturn on the inside. It is designed for wood or hollow metal doors and it is finished with a satin chrome color. Used as reliable extra protection on exterior entrance doors or in areas where security is necessary to prevent unauthorized entrance.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


Special order non stock item with 6 week lead time
Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets or exceeds A156.5 Grade 1 strength and operational requirements
  • UL10B Listed auxiliary locks for A label single doors, 4' x 8'.
  • 3 year limited warranty

Product at A Glance

  • Deadbolt is thrown or retracted by key on outside or thumbturn on the inside
  • Large inside thumbturn makes it easy to throw and retract deadbolt
  • Includes Schlage cylinder with C123 or C keyway
  • For wood or hollow metal doors
  • High-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
  • Free-spinning, solid cylinder collar resists wrenching and prying
  • Hardened steel ball-bearings will protect mounting bolts from a drill attack
  • Metal shield protects the bolt from an ice-pick attack through the door
Style Single cylinder deadbolt
Finish Satin chrome (626)
Grade Heavy Duty
Throw 1"
Front 1-1/8" X 2-1/4" - square corner
Strike 1-1/8" X 2-3/4" - square corner
Door Thickness 13?4" to 2"
Backset Adjustable 2 3/8" or 2 3/4" backset, square corner, 1 1/8" x 2 1/4", 1" housing dia.

More Info

Deadbolts are often used as an extra measure of protection on outdoor entrances to  prevent unwarranted entrance. This deadbolt is single cylinder and is operable with a key in the outside and a thumbturn on the inside. This high quality lock protects against sawing, kick-in attacks, wrenching, prying, drill attacks and ice pick attack attempts.
