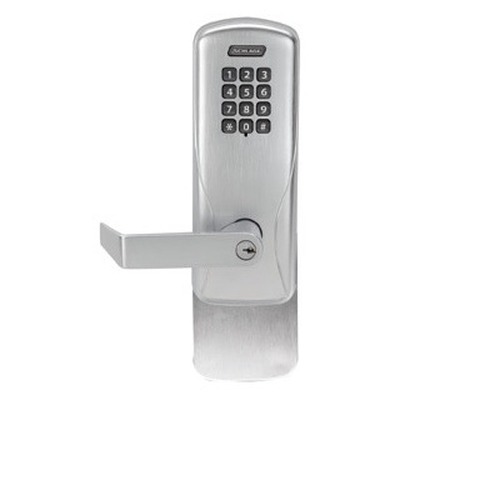

Schlage CO-100-993R-70-KP-RHO-626-JD

Special Order Electronic Digital Pushbutton Exit Device Lock

SKU: CO-100-993R-70-KP-RHO-626-JD

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

The Schlage CO-100-993R-70-KP-RHO-626-JD is an offline electronic pushbutton lock for use as Exit device trim with compatible exit devices in retrofit or new construction applications. 500 use codes that can be easily added or deleted at anytime, right at the door. User rights for the CO-100 are stored on the lock. The CO-Series from Schlage makes it easy to upgrade from traditional mechanical solutions to electronic access control. Electronic access control provides added security, convenience and efficiency.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order item with 4 week lead time.
  • Stand alone exit device trim for Rim and Concealed Vertical Rod devices on metal doors.
  • Satin chrome finish.
  • Rhodes style lever.
  • Prepped for Schlage large format (FSIC) IC core key override. IC core not included.
  • Up to 500 unique 3-6 digit PIN codes stored on the lock.
  • Battery operated, uses 4 AA, up to 2 years battery life.
  • Door thickness 1-3/4" standard.
  • Compatible with Von Duprin 98/99 and 98/99XP Rim and CVR, 22/22F rim device, Falcon 25 rim ,Corbin 5000 rim,Yale 7000 rim, Dorma 9300 rim and

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

More Info

  • Handed, field reversible.
  • ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed and lever meets ADA requirements.
  • Operating temperature - exterior -31° to 151°F, interior 32° to 120°F.
  • Credential Verification Time - ≤ 1 second.
