Schlage CO-100-993R-70-KP-RHO-626-PD

Special Order Electronic Digital Pushbutton Exit Device Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: CO-100-993R-70-KP-RHO-626-PD

Choose Options Below

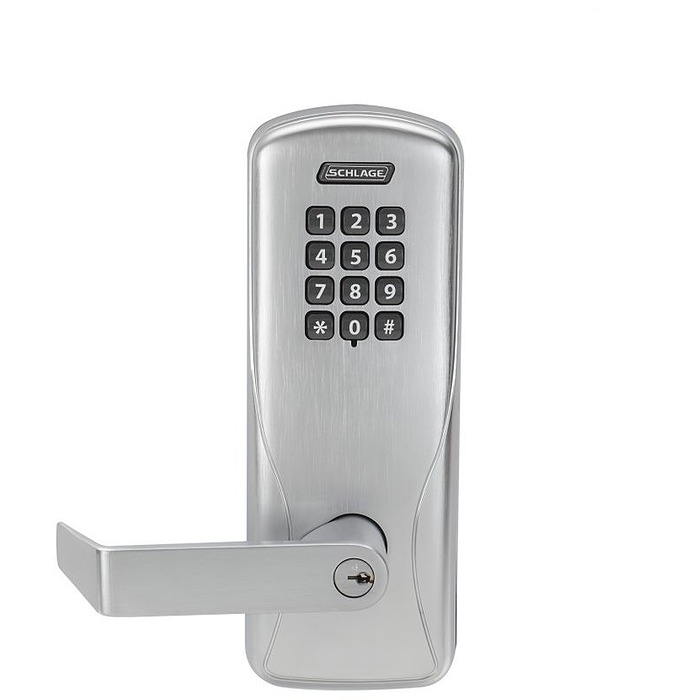

The Schlage CO-100-993R-70-KP-RHO-626-PD is an offline electronic pushbutton lock for use as Exit device trim with compatible exit devices in retrofit or new construction applications. 500 use codes that can be easily added or deleted at anytime, right at the door. User rights for the CO-100 are stored on the lock. The CO-Series from Schlage makes it easy to upgrade from traditional mechanical solutions to electronic access control. Electronic access control provides added security, convenience and efficiency.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide


Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed


Special order item with 4 week lead time.
  • Stand alone exit device trim for Rim and Concealed Vertical Rod devices on metal doors.
  • Satin chrome finish.
  • Rhodes style lever.
  • With Schlage S123  6 pin cylinder,keyed different with with two keys.
  • Up to 500 unique 3-6 digit PIN codes stored on the lock.
  • Battery operated, uses 4 AA, up to 2 years battery life.
  • Door thickness 1-3/4" standard.
  • Compatible with Von Duprin 98/99 and 98/99XP Rim and CVR, 22/22F rim device, Falcon 25 rim ,Corbin 5000 rim,Yale 7000 rim, Dorma 9300 rim.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Handed, field reversible.
  • ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed and lever meets ADA requirements.
  • Operating temperature - exterior -31° to 151°F, interior 32° to 120°F.
  • Credential Verification Time - ≤ 1 second.
