Schlage CO-100-MS-70-KP-RHO-626-158

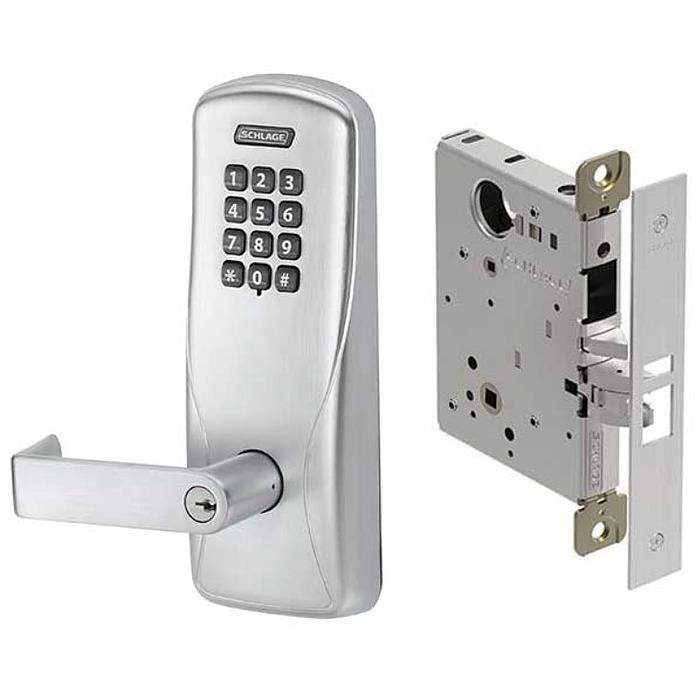

Special Order Electronic Digital Pushbutton Mortise Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: CO-100-MS-70-KP-RHO-626-158

Choose Options Below

The Schlage CO-100-MS-70-KP-RHO-626 is an offline electronic pushbutton lock with 500 use codes that can be easily added or deleted at anytime, right at the door. User rights for the CO-100 are stored on the lock. The CO-Series from Schlage makes it easy to upgrade from traditional mechanical solutions to electronic access control. Electronic access control provides added security, convenience and efficiency. Weather resistant.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish 26D:

626 Satin Chrome (26D) 626 Satin Chrome (26D)

Choose Keying:

P6 - Keyed Different, 6-Pin C123 Everest P6 - Keyed Different, 6-Pin C123 Everest
J - Schlage Large Format IC Prep (Core sold separately) J - Schlage Large Format IC Prep (Core sold separately) Subtract -($18.48)
B - Small Format IC Prep (Core sold separately) B - Small Format IC Prep (Core sold separately) Subtract -($18.48)


Special order non stock itm with 4 week lead time.
  • For doors 1-5/8" thick
  • Mortise stand alone electronic lock.
  • Classroom/Storeroom function.
  • Satin chrome finish.
  • Rhodes style lever.
  • In a classroom application a toggle pin code entered from the outside can be used to put the lock into a “locked” or “unlocked” state. Lock can not be locked /unlocked from the inside.
  • In a storeroom application the lock unlocks when a pin code is entered and relocks automatically.
  • Inside lever always unlocked.
  • With key override standard Schalge 6 pin keyed cylinder,
  • Up to 500 unique 3-6 digit PIN codes stored on the lock.
  • Battery operated, uses 4 AA, up to 2 years battery life.
  • Field reversible handing.
  • Door thickness 1-3/4" standard.
  • Weather resistant- temperature - exterior -31° to 151°F, interior 32° to 120°F. hurricane
    wind and impact rated.Operating humidity 0 - 100% non-condensing.

Available Options: Choose Options Above

  • Finish 26D:

  • Keying:

    • P6 - Keyed Different, 6-Pin C123 Everest
    • J - Schlage Large Format IC Prep (Core sold separately)
    • B - Small Format IC Prep (Core sold separately)

More Info

  • Manually programmable options
    Credential type.         Function.
    Programming - Used to enable programming of the lock. Does not unlock the lock.
    Normal  use - Unlocks the lock momentarily when in a normally secured state.
    Toggle - Changes the state of the lock unless in freeze state.
    Freeze -  Maintains the lock in current state until freeze PIN is entered again.
    Pass-through -  Unlocks a lock momentarily, regardless of state
  • ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed and lever meets ADA requirements.
  • Backset 2-3/4".
  • Strike-ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip.
  • Armor front, 1-1/4” Wide, square corner
  • Credential Verification Time - ≤ 1 second.
  • Latch Bolt - 1/2˝ throw security latch.
