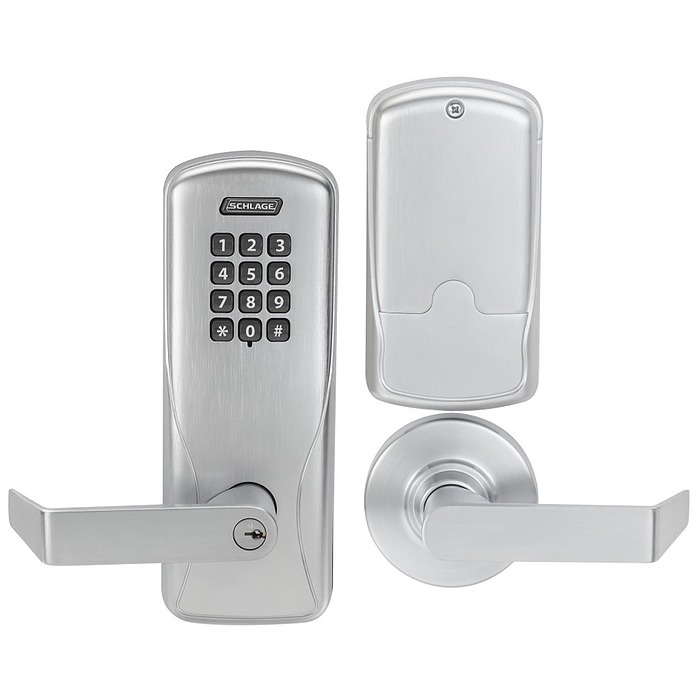

Schlage CO-100-MS-70-KP-RHO-626-P6

Special Order Electronic Digital Pushbutton Mortise Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: CO-100-MS-70-KP-RHO-626-P6

Choose Options Below

The Schlage CO-100-MS-70-KP-RHO-626 is an offline electronic pushbutton mortise lock with 500 user codes that can be easily added or deleted at anytime, right at the door. User rights for the CO-100 are stored on the lock. The CO-Series from Schlage makes it easy to upgrade from traditional mechanical solutions to electronic access control. Electronic access control provides added security, convenience and efficiency. Weather resistant.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish 26D:

626 Satin Chrome (26D) 626 Satin Chrome (26D)

Overview

Special order non stock itm with 18 week lead time.
  • Mortise stand alone electronic lock.
  • Classroom/Storeroom function.
  • Satin chrome finish.
  • Rhodes style lever.
  • In a classroom application a toggle pin code entered from the outside can be used to put the lock into a “locked” or “unlocked” state. Lock can not be locked /unlocked from the inside.
  • In a storeroom application the lock unlocks when a pin code is entered and relocks automatically.
  • Inside lever always unlocked.
  • With key override standard Schalge 6 pin keyed cylinder.
  • Up to 500 unique 3-6 digit PIN codes stored on the lock.
  • Battery operated, uses 4 AA, up to 2 years battery life.
  • Field reversible handing.
  • Door thickness 1-3/4" standard.
  • Weather resistant- temperature - exterior -31° to 151°F, interior 32° to 120°F. hurricane
    wind and impact rated.Operating humidity 0 - 100% non-condensing.

Available Options: Choose Options Above

More Info

  • Manually programmable options
    Credential type.         Function.
    Programming - Used to enable programming of the lock. Does not unlock the lock.
    Normal  use - Unlocks the lock momentarily when in a normally secured state.
    Toggle - Changes the state of the lock unless in freeze state.
    Freeze -  Maintains the lock in current state until freeze PIN is entered again.
    Pass-through -  Unlocks a lock momentarily, regardless of state
  • ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed and lever meets ADA requirements.
  • Backset 2-3/4".
  • Strike-ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip.
  • Armor front, 1-1/4” Wide, square corner
  • Credential Verification Time - ≤ 1 second.
  • Latch Bolt - 1/2˝ throw security latch.
