Schlage GF3000TJ

Top Jamb Mount Shear Lock

Quick Product Details

  • Limitied Quantity Available. Call 866-749-7661 for Availability
Price: $1,146.00 /each

SKU: GF3000TJ

Choose Options Below

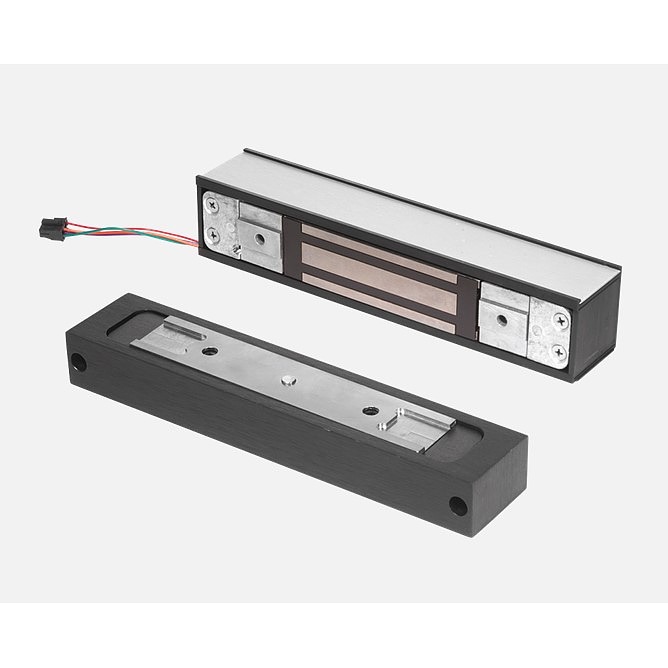

The Schlage GF3000TJ Electromagnetic Shear Lock model provides a low profile surface mount lock for inswinging metal door and frame, glass door with top rail and metal frame, or wood door and frame.

  • Stock Item
  • Order in the next 14 hours 27 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,146.00

Choose DSM/MBS:

No DSM/MBS Door Status Monitor and Magnetic Bond Sensor

Help Me Decide

DSM/MBS indicates that:

  • The door is open or closed
  • A proper bond exists between the magnets and the armature
  • That the door is secure



Overview

  • Electromagnetic Lock.
  • Magnet is surface mount lock for inswinging doors.
  •  Armature adjustment from top edge of the armature.
  • Low temperature operation.
  • Microprocessor Controlled.
  • Requires filtered, regulated power supply.
  • Built-in Auto Relocking Switch (ARS).
  • Jump 1/4” Gap - No In-rush Current (noticeable noise level when connecting).
  • Automatic Voltage Selection 12VDC or 24VDC.
  • Adjustable Time Delay, 1-30 Sec. from face of magnet.
  • Holding Force 3000 lbs.

Available Options: Choose Options Above

  • DSM/MBS: info icon

    • No DSM/MBS Door Status Monitor and Magnetic Bond Sensor

More Info


  • Current Draw- 0.90 Amp @ 12VDC, 0.45 Amp @ 24VDC
  • Weight: 7 lbs.
  • Lock housing :Length- 9-3/16," Height-1-7/8", Depth- 2'
  • Cool Temperature Regulator
