Schlage L9050L-01A-626

Special Order Entry Function Complete Mortise Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L9050L-01A-626

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The schlage L9050 complete entry function mortise lock. Schlage L-series extra heavy duty mortise locks are built to withstand the rigors of daily use without fail

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Overview

Special order non stock item with 6  week lead time

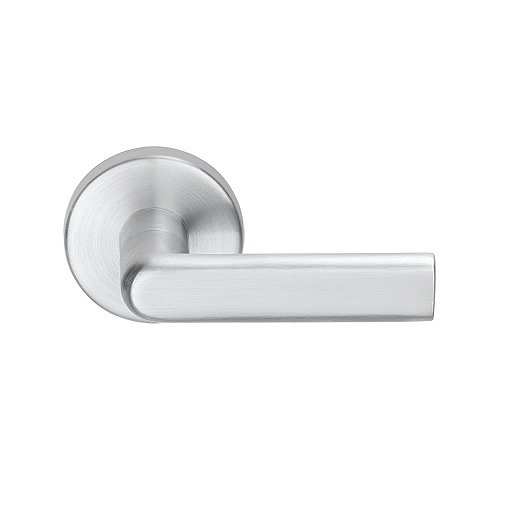

  • Complete mortise lock includes 01 style lever and A style rose
  • Mortise cylinder not included.
  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only.
  • Entrance/Office function.
  • Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning
    inside thumbturn.
  • When locked, key outside or lever inside retracts latchbolt.
  • Outside lever remains locked until thumbturn is returned to
    vertical or unlocked by key.
  • Inside lever is always free for immediate exit.

Available Options: Choose Options Above

More Info

  • Ansi F20, L9050 Entrance/Office function.
  • Handing -shipped right hand, easily field reversible without disassembly.
  • Lock body size- 4-7/16” x 6-1/16” x 1”.
  • Armored Front-1-1/4” x 8” x 7/32”.
  • 3/4” throw stainless steel latch with anti-friction tongue.
  • Strike , ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16”  lip to center with dust box standard.
  • ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door.
