Schlage L9050P-06L-626

Entry Function Complete Mortise Lock with Escutcheon and Lever

or for better pricing

Price: $655.00 /each

SKU: L9050P-06L-626

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The schlage L9050 complete entry function mortise lock. Schlage L-series extra heavy duty mortise locks are built to withstand the rigors of daily use without fail

  • In Stock!
  • Order in the next 2 hours 58 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $655.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose Keyway:

Classic Conventional C keyway Classic Conventional C keyway
Everest Conventional C123 keyway Everest Conventional C123 keyway
Less Cylinder Less Cylinder Subtract -($52.50)

Overview

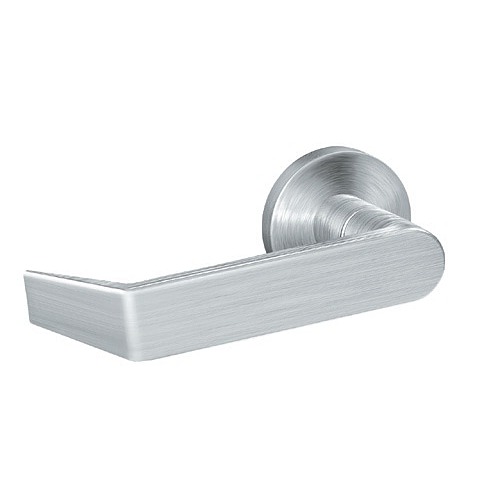

  • Complete mortise lock includes lock body, 06 style levers with L style escutcheon , armored front, strike and cylinder.
  • L style escutcheon , 8" x 1 3⁄4" x 7⁄16".

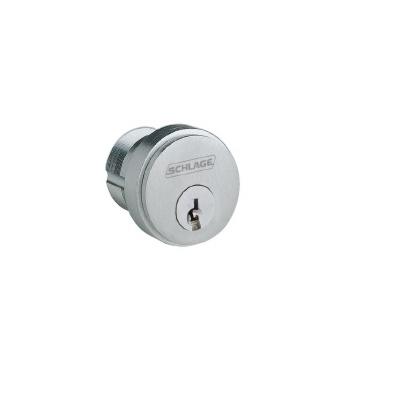

  • Mortise cylinder , 6-pin keyed different with C or C123 keyway keyed different.
  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only.
  • Entrance/Office function.
  • Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning
    inside thumbturn.
  • When locked, key outside or lever inside retracts latchbolt.
  • Outside lever remains locked until thumbturn is returned to
    vertical or unlocked by key.
  • Inside lever is always free for immediate exit.

Available Options: Choose Options Above

  • Finish:

  • Keyway:

    • Classic Conventional C keyway
    • Everest Conventional C123 keyway
    • Less Cylinder

More Info

  • Ansi F20, L9050 Entrance/Office function.
  • Handing -shipped right hand, easily field reversible without disassembly.
  • Lock body size- 4-7/16” x 6-1/16” x 1”.
  • Armored Front-1-1/4” x 8” x 7/32”.
  • 3/4” throw stainless steel latch with anti-friction tongue.
  • Strike , ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16”  lip to center with dust box standard.
  • ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
