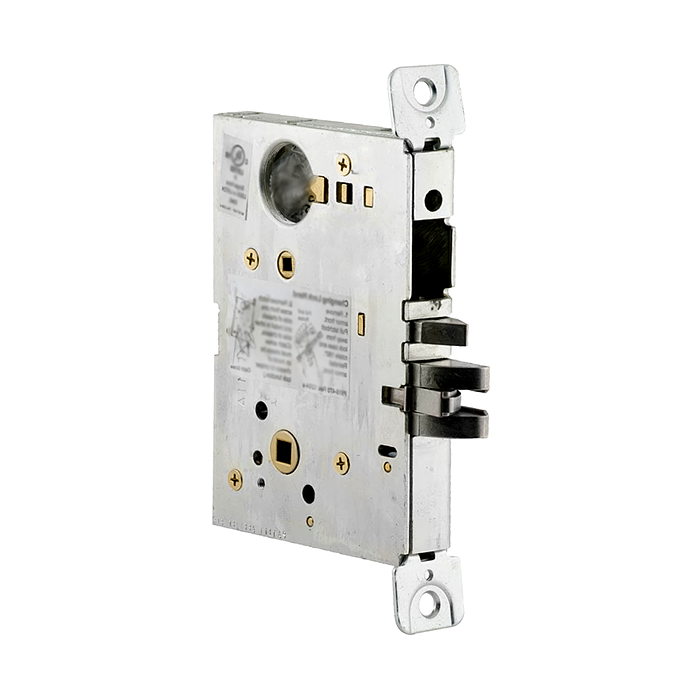

Schlage L9056LB

Special Order Entrance/Office With Automatic Unlocking Mortise Lock Body

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L9056LB

Choose Options Below

The Schlage L9056LB Entrance/Office With Automatic Unlocking mortise lock body is ideal for use in schools, hospitals and factories where the hardware must deliver consistent, dependable operation and stand up to constant use and abuse.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Armored Front:

No Armor Front Needed
Armor Front-Satin Chrome finish (09- 663) Armor Front-Satin Chrome finish (09- 663)

Help Me Decide

  • Armor Front for L9050/L9070/L9080.
  • Satin chrome finish-626.
  • 1/4” x 8” x 7/32”.
  • Mounting screws are included with armor fronts.

Choose Strike:

No Strike Needed
Standard Strike for L9000 Series -Satin Chrome Finish (10-072) Standard Strike for L9000 Series -Satin Chrome Finish (10-072)

Help Me Decide

Standard square corner strike for Schlage L9000 series mortise locks

1-1/4” x 4-7/8” x 13/16” Lip.

Satin chrome finish-626





Overview

Special order item with 12week lead time.
  • Entrance/Office With Automatic Unlocking lock body only.
  • Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn.
  • When outside is locked, latchbolt is retracted by key outside or by lever inside
  • Outside lever unlocked by key outside, thumbturn or closing door.
  • Rotating inside knob/lever simultaneously retracts latchbolt and unlocks outside  lever.
  • Inside knob/lever is always free for immediate egress.
  • Lock bodies are furnished with mounting screws and templates only.
  • Lock trim, armored front, strike and cylinders must be ordered separately.
  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only.

Available Options: Choose Options Above

  • Armored Front: info icon

    • No Armor Front Needed
    • Armor Front-Satin Chrome finish (09- 663)
  • Strike: info icon

    • No Strike Needed
    • Standard Strike for L9000 Series -Satin Chrome Finish (10-072)

More Info

  •  Handing -shipped right hand, easily field reversible without disassembly.
  • Lock body size- 4-7/16” x 6-1/16” x 1”.
  • Armored Front-1-1/4” x 8” x 7/32”.
  • 3/4” throw stainless steel latch with anti-friction tongue.
  • Strike , ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center with dust box standard.
  • ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9007).
