Schlage L9056P-07B-US26D

Special Order Complete Entrance/Office With Automatic Unlocking Mortise Lock

Quick Product Details

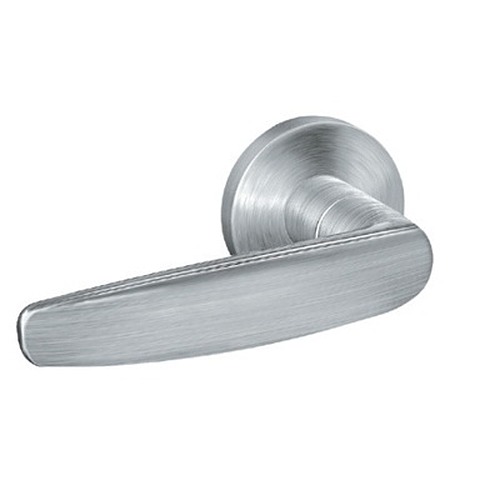

  • With #7 style lever and B style rose.
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L9056P-07B-US26D

The Schlage L9056P complete Entrance/Office With Automatic Unlocking mortise lock is ideal for use in schools, hospitals and factories where the hardware must deliver consistent, dependable operation and stand up to constant use and abuse.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order item with 4 week lead time.
  • Complete Entrance/Office mortise lock With Automatic Unlocking.
  • Satin chrome finish.
  • Latchbolt retracted by lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn.
  • When outside is locked, latchbolt is retracted by key outside or by lever inside.
  • Outside lever unlocked by key outside, thumbturn or closing door.
  • Rotating inside knob/lever simultaneously retracts latchbolt and unlocks outside  lever.
  • Inside lever is always free for immediate egress.
  • For doors 1-3⁄4" thick standard.
  • Backset 2-3⁄4" only.

More Info

  •  Handing -shipped right hand, easily field reversible without disassembly.
  • Lock body size- 4-7/16” x 6-1/16” x 1”.
  • Armored Front-1-1/4” x 8” x 7/32”.
  • 3/4” throw stainless steel latch with anti-friction tongue.
  • Strike , ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center with dust box standard.
  • ANSI A156.13 Series 1000, Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9007).
