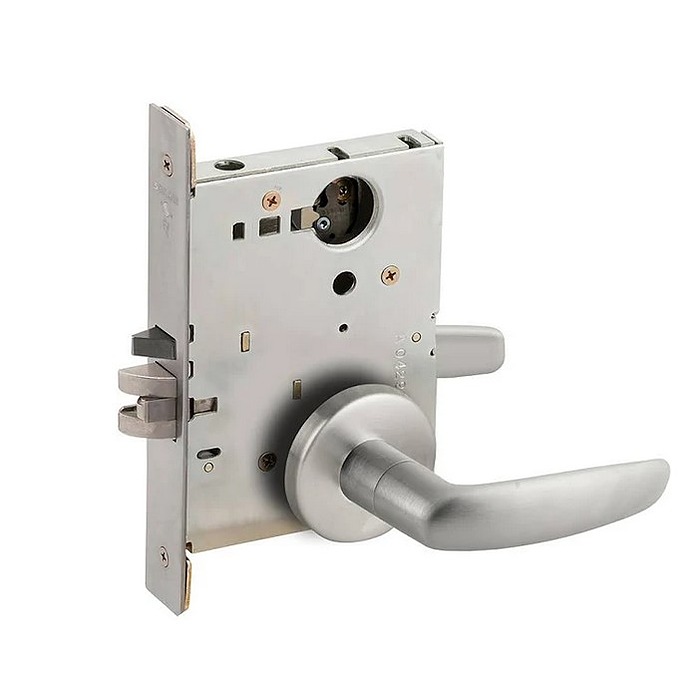

Schlage L9453-01A-613-LC

Special Order Entry Function with Deadbolt Complete Mortise Lock with Lever and Rose

Quick Product Details

  • Entrance/Office With Deadbolt Function Mortise Lock
  • Heavy Duty
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: L9453-01A-613-LC

Choose Options Below

This Schlage L9453 is a mortise lock set with a lever and rose and contains everything necessary for a new or replacement application. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail.The L9453 operates with the entry function with deadbolt. Cylinders are not included with the purchase of this lock, and must be supplied separately for usage.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $899.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

613 - Oil Rubbed Bronze 613 - Oil Rubbed Bronze

Choose Lever:

01 Lever with 01 Lever with "A" style rose +$3.00

Help Me Decide

"A" style rose has a diameter of 2-1/8"

Choose Keyway:

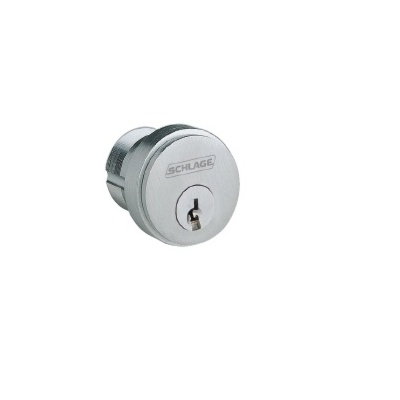

Classic Conventional C keyway + $69.00 Classic Conventional C keyway +$69.00
Everest Conventional C123 keyway + $69.00 Everest Conventional C123 keyway +$69.00
Less Cylinder

Overview


Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Lever: info icon

    • 01 Lever with "A" style rose
  • Keyway:

    • Classic Conventional C keyway
    • Everest Conventional C123 keyway
    • Less Cylinder

Product at A Glance

  • Entry function with deabolt- mortise lock set which the latchbolt will be retracted by either lever, unless the outside lever is locked by 20 degree rotation of thumbturn. When locked, the key in the outside or inside lever will retract latchbolt and deadbolt simultaneously. The outside lever remains locked until thumbturn is returned to the  vertical position and the inside lever is free at all times.
  • Complete mortise lock includes, lock body,levers with "A" style rose, armored front, and strike. Cylinder Sold Separately
Style Mortise lock set
Grade Extra heavy duty
Function Entrance/Office with Deadbolt Function:
- Latchbolt is retracted by either lever unless locked by 20 degree rotation of thumbturn
- When locked, key outside/lever inside will retract the deadbolt and latchbolt simultaneously
- Outside lever remains locked until the thumbturn is returned to vertical position
- Inside lever is always free
- ANSI F20
Handing Non-handed - easily reversible
Lever 01 Style Lever
Rose "A" style rose with 2-1/8" diameter
Backset 2-3/4" (standard)
Strike Curved lip strike 1-1/4" x 4-7/8" X 1-3/16" lip to center with dust box standard
Latch Stainless steel latch with anti friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" X 8" X 7/32"
