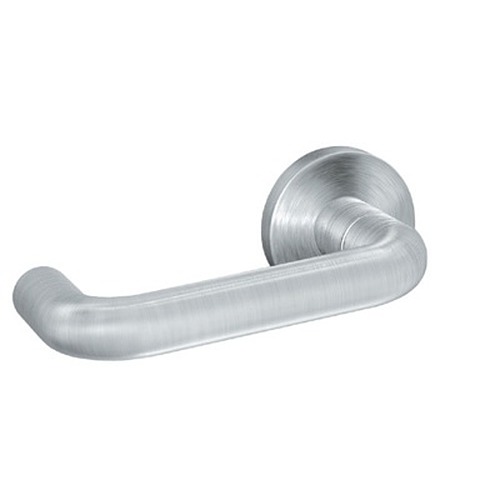

Schlage L9453

Entry Function with Deadbolt Complete Mortise Lock with Lever and Rose

Quick Product Details

  • Mortise Lock Body
  • Heavy Duty
  • Entrance/Office With Deadbolt Function

or for better pricing

Price: $683.00 /each

SKU: L9453

Choose Options Below

This Schlage L9453 is a mortise lock set with a lever and rose and contains everything necessary for a new or replacement application. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail.The L9453 operates with the entry function with deadbolt

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $683.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose Lever:

03-Lever with 03-Lever with "A" style rose
06 Lever with 06 Lever with "A" style rose +$80.00
07 Lever with 07 Lever with "A" style rose +$80.00

Help Me Decide

"A" style rose has a diameter of 2-1/8"

Choose Keyway:

Classic Conventional C keyway Classic Conventional C keyway
Everest Conventional C123 keyway Everest Conventional C123 keyway
Less Cylinder Subtract -($60.20)

Overview


Suited for:
  • Heavy duty commercial applications

Quality and Safety:
  • Meets ANSI/BHMA A156.13 series 1000 Grade 1 operational security requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 3 year limited warranty

Available Options: Choose Options Above

  • Finish:

  • Lever: info icon

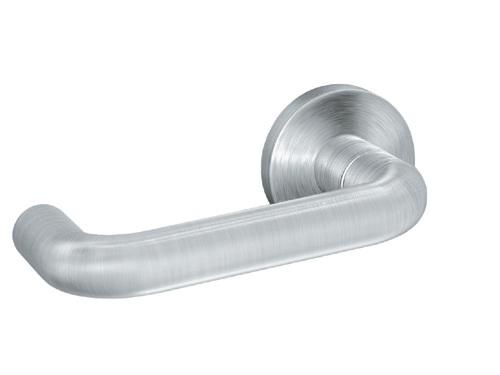

    • 03-Lever with "A" style rose

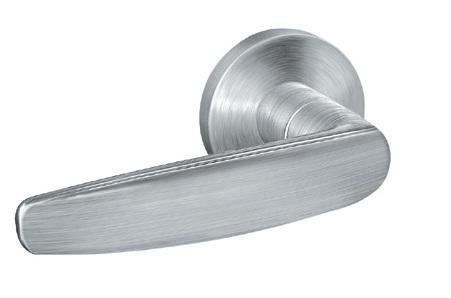

    • 06 Lever with "A" style rose

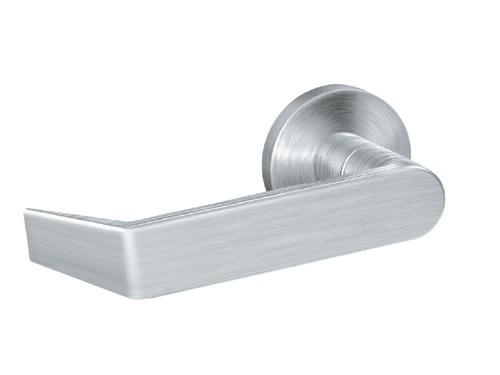

    • 07 Lever with "A" style rose
  • Keyway:

    • Classic Conventional C keyway
    • Everest Conventional C123 keyway
    • Less Cylinder

Product at A Glance

  • Entry function with deabolt- mortise lock set which in which the latchbolt will be retracted by either lever, unless the outside lever is locked by 20 degree rotation of thumbturn. When locked, the key in the outside or inside lever will retract latchbolt and deadbolt simultaneously. The outside lever remains locked until thumbturn is returned to the  vertical position and the inside lever is free at all times.
  • Complete mortise lock includes, lock body,levers with "A" style rose, armored front, strike and cylinder.
Style Mortise lock set
Grade Extra heavy duty
Function Entrance/Office with Deadbolt Function:
- Latchbolt is retracted by either lever unless locked by 20 degree rotation of thumbturn
- When locked, key outside/lever inside will retract the deadbolt and latchbolt simultaneously
- Outside lever remains locked until the thumbturn is returned to vertical position
- Inside lever is always free
- ANSI F20
Handing Non-handed - easily reversible
Lever Select 06, 07 or 03 style lever
Rose "A" style rose with 2-1/8" diameter
Cylinder 6-pin Everest C123 or Classic Conventional C keyway keyed different standard
Backset 2-3/4" (standard)
Strike Curved lip strike 1-1/4" x 4-7/8" X 1-3/16" lip to center with dust box standard
Latch Stainless steel latch with anti friction tongue
Throw 3/4"
Door Thickness 1-3/4"
Lock Body Size 4-7/16" X 6-1/16" X 1"
Armored Front 1-1/4" X 8" X 7/32"
