Schlage M390RFK

Retrofit Magnetic Lock for Locknetics 390+

Price: $939.00 /each

SKU: M390RFK

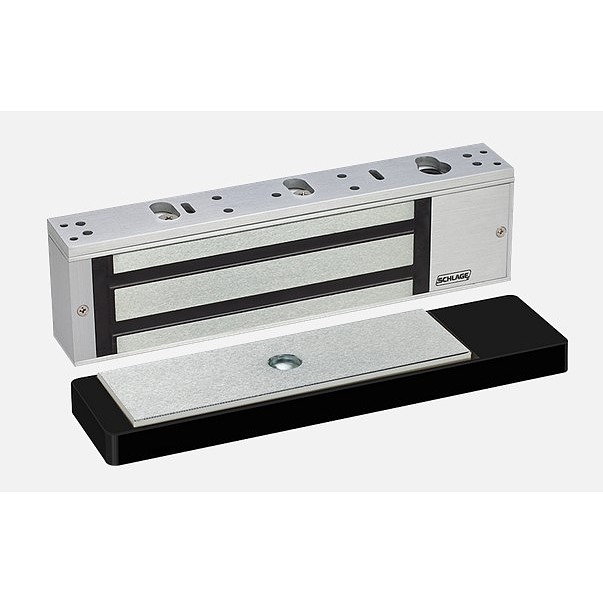

The M390RFK surface mounted electromagnetic lock is ideal for high security applications. It's modular design employs a standardized circuit board with easy-to-install connectors, adjustable mounting brackets and integrated mounting screws.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 14 hours 1 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

The armature housing holds the armature in place, eliminating noise and sagging, and increasing the overall reliability of the product. The armature housing also provides an aesthetically pleasing look over traditional armature mountings allowing it to blend into the surrounding environment. The armature housing also holds magnets for the DSM option without having to mount an additional plate to the armature, ensuring quicker, more reliable installations.

All models easily interface with most electronic access control systems in the market today, as well as automatic door operators and fire or other hazard sensing systems for egress and emergency egress.

The M390RFK is designed to retrofit the Locknetics 390+ without any additional prep. This ensures ease of installation for retrofit applications. The M390RFK comes standard with a door position switch (DPS), magnetic bond sensor (MBS), and relocking time delay (RTD).
  • Direct replacement for the Locknetics 390+ with same template
  • Door position switch (DPS)
  • Magnetic bond sensor with LED indicator (MBS)
  • Relocking time delay (RTD)
  • Field selectable 12/24 VDC
  • Adjustable mounting brackets
  • ANSI/BHMA A156.23 Grade 1 with 1500 lbs. direct holding force
  • UL listed for 3 hour fire rating

Product at A Glance

Current Draw
  • .59A @ 12 VDC
  • .29A @ 24 VDC
Dimensions
  • Height 2 7/8”
  • Length 10 1/2”
  • Width 1 5-/8”"
Conditions
  • Temperature 14° – 140° F
