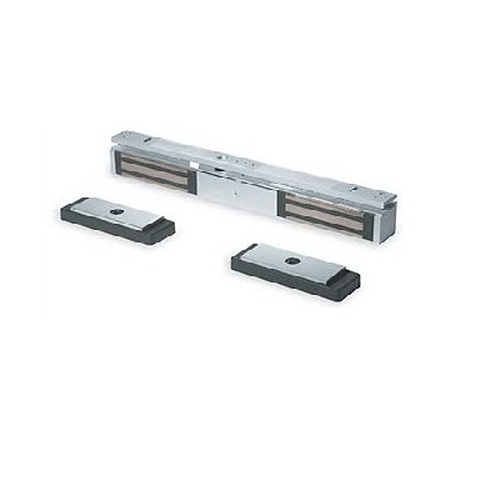

Schlage M422P-DPS-MBS-RTD

Double Magnetic Lock with Options

Price: $1,376.00 /each

SKU: M422P-DPS-MBS-RTD

Double magnetic lock loaded with options

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 2 hours 41 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • “P” designations add intelligent sensing and reporting features needed to integrate with access control systems.
  • 500 lb. hold force rating for traffic control applications.
  • Automatic voltage selection (AVS)magnetic bond sensor (MBS), adjustable relock time delay (RTD) and door position switch (DPS).
  • ANSI/BHMA 156.23 Grade 1, UL 1034, UL 10C, UL 294, cUL, CFSM certifications.


Product at A Glance

  • Current, 1.5A @ 12 VDC .76A @ 24 VDC
  • Automatic dual voltage12/24 VDC.
  • Height  2 1⁄2",Length 18 1⁄16",Depth 1 3⁄8.

More Info

  •  Magnetic Bond Sensor (MBS) monitors the strength of the bond between the lock and armature so you know the door is secure.
  • Door Position Switch (DPS) monitors whether the door is open or closed.
  • Relock Time Delay (RTD) provides a relock delay that is adjustable from 0.5 to 30 seconds.
  • Wire gauge ,14-22 AWG.
