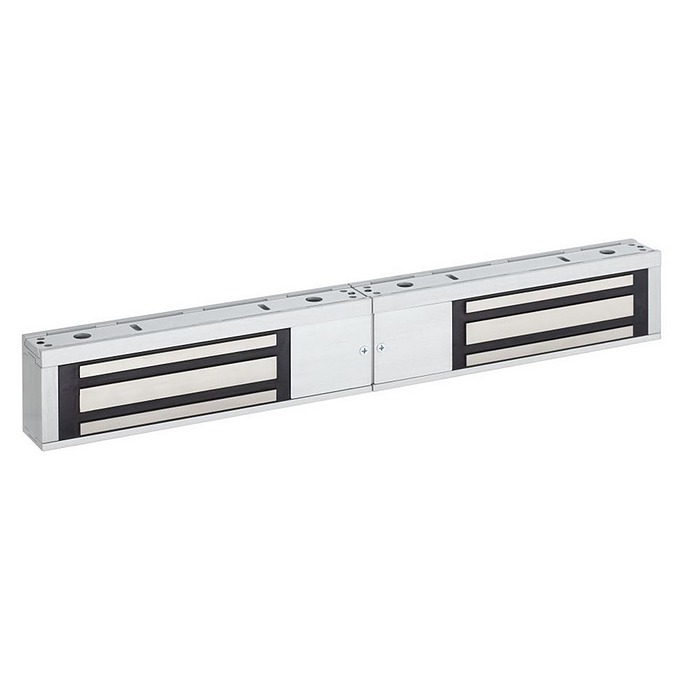

Schlage M452P

Double Door Electromagnetic Lock with MBS, DPS, RTD

Price: $1,437.00 /each

SKU: M452P

The Schlage M452P is a High Security Electromagnetic Lock designed to provide automatic voltage sensing for 12 and 24 volts DC. Includes MBS, DPS, RTD. Includes 2 magnets for a double door setup.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 14 hours 59 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Holding Force meets or exceeds BHMA standard of 1000 lbs.
  • For double doors.
  • Height 3" x Length 20-9/16" x depth 1-3/4".
  • Automatic Voltage Selection (AVS) senses the voltage applied to the lock
    and responds accordingly.
  • Current Draw-1.5A @ 12 VDC. .75A @ 24 VDC.
  • Input Voltage 12/24 VDC, automatic dual voltage.
  • Armature mount allows armature to pivot compensating for slight opening imperfections.

Product at A Glance

MBS Magnetic Bond Sensor monitors the strength of the bond between the lock and armature so you know the door is secure
DPS Door Position Switch monitors whether the door is open or closed
RTD Relock Time Delay provides a relock delay that is adjustable from 0.5 to 30 seconds

More Info

  • Wire Gauge 14-22 AWG.
  • Weight -10 lb.
  • Bayonet mount makes installation simpler by not requiring magnet to beheld overhead
    while mounting screws are installed.
  • New design allows for RH/LH configuration in the field.
  • UL1034 Burglary-Resistant Electronic Locking Mechanisms.
  • UL10C Positive Pressure Fire Tests of Door.
  • Assemblies and ANSI/BHMA Grade 1 certifications.
