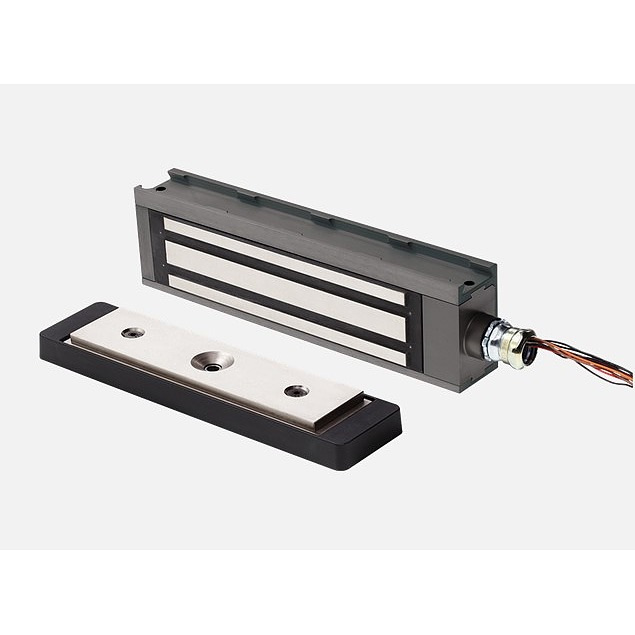

Schlage M490G

High Security Electromagnetic Gate Lock

Quick Product Details

  • 1500lbs. Holding Force
  • For Swinging or Sliding Gates
  • Corrosion Resistant Finish
  • Limited Availability, Fast Mover. Call 866-749-7661 for Stock Availability
Price: $756.00 /each

SKU: M490G

The Schlage M490G Electromagnetic Gate Lock is a weather resistant electromagnetic lock with 1500 lbs. of holding force, designed for use on all types of sliding and swinging gates. As a high security magnetic lock it can accommodate misalignment problems while supplying superior holding force.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 37 hours 7 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Holding Force meets or exceeds BHMA standard of 1500 lbs.
  • For sliding or swinging gate doors
  • Special Corrosion Resistant Finish
  • Height 3" x Length 11" x Width 1-3/4".
  • Automatic Voltage Selection (AVS) senses the voltage applied to the lock
    and responds accordingly.
  • Current Draw-.65A @ 12 VDC.  .35A @ 24 VDC.
  • Input Voltage 12/24 VDC, automatic dual voltage.
  • Includes universal mounting brackets for swinging or sliding gate
  • 1/2" EMT Compression Fitting

Product at A Glance

  • ƒ Built in voltage spike suppression
  • ƒ Door Status Monitor
  • ƒ Magnetic Bond Sensor
  • ƒ ANSI/BHMA 156.23
  • Outdoor Rated - Certified for use -31° to 151° F (-35° to 66° C)
