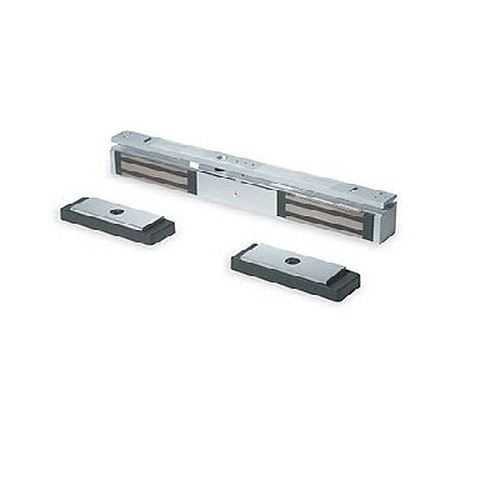

Schlage M492P

High Security Electromagnetic Lock With Door Monitor & Sensor

Quick Product Details

  • Electromagnetic Lock
  • With Door Monitor and Sensor
SKU: M492P

Price: $977.00 /each

This Schlage M492P is a high security electromagnetic lock with door monitor and sensor. Magnetic Bond Sensor (MBS) monitors the strength of the bond between the lock and armature so you know that the door is secure, and the Door Position Switch (DPS) monitors whether the door is open or closed. Used with standard duty double doors.

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • Order in the next 22 hours 11 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview


Quality and Safety:
  • ANSI/BHMA Grade 1 certified
  • UL1034 Burglary-Resistant Electronic Locking Mechanisms.
  • UL10C Positive Pressure Fire Tests of Door
  • Holding Force meets or exceeds BHMA standard of 1500 lbs.
  • 1 year limited warranty

Product at A Glance

  • Magnetic Bond Sensor (MBS) monitors the strength of the bond between the lock and armature so you know that the door is secure.
  • Door Position Switch (DPS) monitors whether the door is open or closed.
  • Relock Time Delay (RTD) provides a relock delay that is adjustable from 0.5 to 30 seconds.
  • Bayonet mount makes installation simpler by not requiring magnet to be held overhead while mounting screws are installed
Style Electromagnetic Lock
Application For double doors
Handing New design allows for RH/LH configuration in the field
Current Draw 1.3 Amp @ 12 VDC or .7 Amp @ 24 VDC
Input Voltage 12/24 VDC, automatic dual voltage
Wire Gauge 14-22 AWG
Weight 28 lbs.
Dimensions 3" H x 25 1/16" L x 1-3/4" W
Armature Bracket Dimensions 10-5/8" L x 1-3/8" H x 1" D

Electromagnetic locks consist of an electromagnet and an armature plate. These two parts do not interconnect, but the electromagnetic power keeps the door safely, secured. The optional magnetic bond sensor indicates if a proper bond exists between the magnets and the armature to ensure the doors security. The door status monitor will also indicate whether the door is open or closed.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

High Security Electromagnetic Lock With Door Monitor & Sensor
