Schlage ND53JD

Heavy Duty Large Format Interchangeable Core Entrance Lock

Quick Product Details

  • Lever Set
  • For commercial exterior and interior doors
  • Heavy Duty
  • Entrance Function
  • Interchangeable core lock

or for better pricing

Price: $501.00 /each

SKU: ND53JD

Choose Options Below

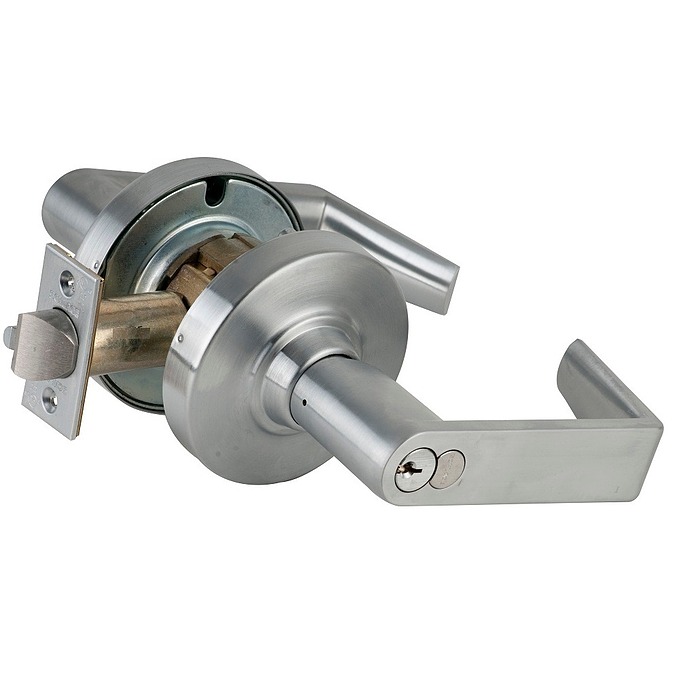

This Schlage ND53JD is an interchangeable core, entrance function commercial lever lock. The ND series Schlage locks are extremely tough and durable, designed to withstand the constant use and abuse that usually comes with heavy duty applications. This lever lock meets ADA requirements for barrier free accessibility.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $501.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Athens (ATH) Athens (ATH)
Sparta (SPA) Sparta (SPA)
Rhodes (RHO) Rhodes (RHO)

Help Me Decide

  • ADA compliant levers.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose IC keyways:

Need Help Deciding? QH chevron down
Classic C -1 Bitted + $64.00 Classic C -1 Bitted +$64.00
Classic E -1 Bitted + $64.00 Classic E -1 Bitted +$64.00
Everest C123 - 1-Bitted + $64.00 Everest C123 - 1-Bitted +$64.00
Everest C145 - 1-Bitted + $64.00 Everest C145 - 1-Bitted +$64.00
S123 Keyed alike + $72.00 S123 Keyed alike +$72.00
S123 Keyed Different + $72.00 S123 Keyed Different +$72.00
Classic C Construction Core 606 Finish Only  (SCTEMP) + $72.00 Classic C Construction Core 606 Finish Only (SCTEMP) +$72.00
No IC Core Needed

Help Me Decide

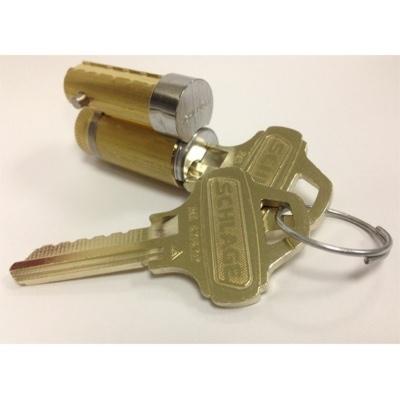

1 bitted cylinders are supplied with two key blanks that are uncut. They can be keyed locally to an existing key system. Construction cores and S123 cores are supplied with two operating keys per core and one control key per order. The construction cores are keyed to a common key and should not be used for permanent security. Temporary Construction Cores are not subject to our standard return policy and Cannot be Returned.

Overview


Suited for:
  • Heavy duty commercial exterior and interior applications

Quality and Safety:
  • Meets ANSI/BHMA A156.2 series 4000 Grade 1 strength and operational requirements
  • UL listed for 3 hour fire door
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty

Available Options: Choose Options Above

  • Lever: info icon

    • Athens (ATH)
    • Sparta (SPA)
    • Rhodes (RHO)
  • Finish:

  • IC keyways: info icon

    • Classic C -1 Bitted
    • Classic E -1 Bitted
    • Everest C123 - 1-Bitted
    • Everest C145 - 1-Bitted
    • S123 Keyed alike
    • S123 Keyed Different
    • Classic C Construction Core 606 Finish Only (SCTEMP)
    • No IC Core Needed

Product at A Glance

  • Interchangeable core locksets allow for immediate rekeying of the door, by using the special control key to replace the core in seconds.
  • Prepped for Schlage large format IC full size interchangeable cores
  • Core is not included
Style Lever lock
Grade Heavy duty
Function Entrance Function:
- Pushing in and turning the push button on the inside lever locks the outside lever, thereby making a key necessary to unlock it until the push button is manually unlocked
- When the push button is pushed in only, a key is necessary to unlock the outside lever until the inside lever is rotated
- Inside lever is always free
- ANSI 109
Handing Non-handed - easily reversible
Backset 2-3/4" (standard)
Strike - Curved lip strike
- 1-1/4" X 4-7/8" (ANSI)
Latch - 2-1/4" X 1-1/8" front
- square corner faceplate
Throw 1/2"
Door Thickness Adjustable from 1-5/8" to 2-1/8"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
