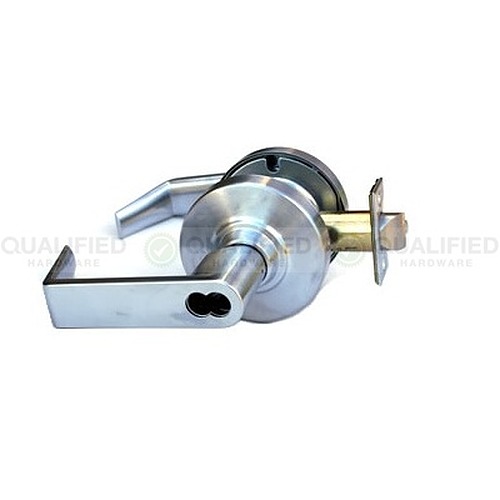

Schlage ND80BD-EU-RHO-626-24V

Special Order Fail Secure Electrified Storeroom Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: ND80BD-EU-RHO-626-24V

The Schlage ND80EU-BD-RHO is a electrified Storeroom function lock and are available for electrically locking and unlocking controls for high security and fire safety applications. They are UL Listed and rated for both fire and electrical single-point locking on labeled doors

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order item with 4 week lead time
  • Electrically unlocked storeroom function.
  • Outside lever continuously locked until unlocked by key or electric current.
  • Inside lever always free for immediate exit.
  • Universal input voltage and auto-detects 12 through 24 VDC for installation flexibility.
  • Fail secure,users can select mode of operation in the field by moving switch on lock chassis; Fail Safe (EL) or Fail Secure (EU)
  • Meets or exceeds A156.2 Series 4000, Grade 1.
  • Low maximum current draw of 0.23 amps (230 mA) allows up to 8 locks on a single 2 amp power supply.
  • With Rhodes (RHO) style lever, satin chrome finish.
  • Strike-ANSI curved lip strike 1-1/4" x 4-7/8".
  • Backset-2-3/4" standard.
  • Door Range-1-5/8" – 2-1/8".
  • ADA-compliant levers.
  • Prepped for Best  SFIC  small format IC core. Core not included.
