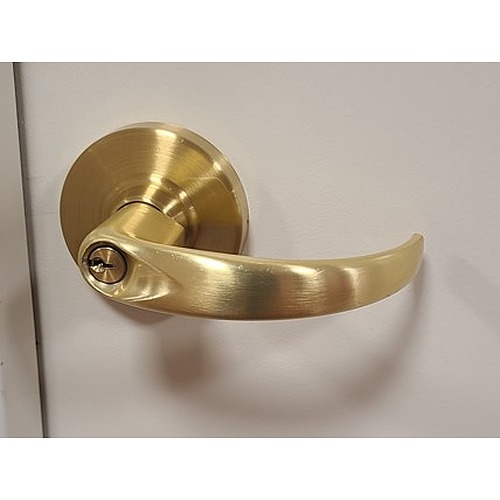

Schlage ND80PDEU-SPA-606-24VDC

Fail Secure Electrified Storeroom Lever

or for better pricing

Price: $713.00 /each
Special Order non-stock item Requires 6 week lead time


Choose Options Below

The Schlage ND80EU-PD-RHO is a electrified Storeroom function lock and are available for electrically locking and unlocking controls for high security and fire safety applications. They are UL Listed and rated for both fire and electrical single-point locking on labeled doors

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $713.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

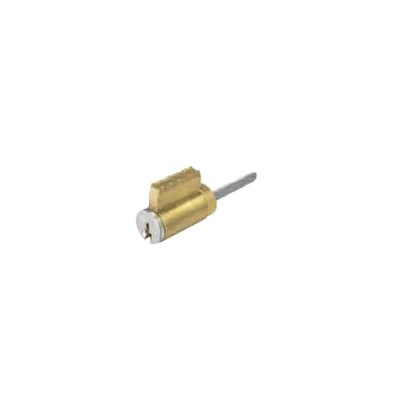

Choose Cylinder:

Everest C123 Keyway, Keyed different Everest C123 Keyway, Keyed different
No Cylinder Needed (LD) Subtract -($54.81)
S123KD Keyway, Keyed Different S123KD Keyway, Keyed Different


  • Electrically unlocked storeroom function.
  • EU-Fail secure, lever continuously locked until unlocked by key or remote release. Power failure locks outside lever.
  • Inside lever always free for immediate exit.
  • 24VDC
  • Meets or exceeds A156.2 Series 4000, Grade 1.
  • With Sparta (SPA) style lever, satin brass finish.
  • Strike-ANSI curved lip strike 1-1/4" x 4-7/8".
  • Backset-2-3/4" standard.
  • Door Range-1-5/8" – 2-1/8".
  • ADA-compliant levers.

Available Options: Choose Options Above

  • Cylinder:

    • Everest C123 Keyway, Keyed different
    • No Cylinder Needed (LD)
    • S123KD Keyway, Keyed Different
