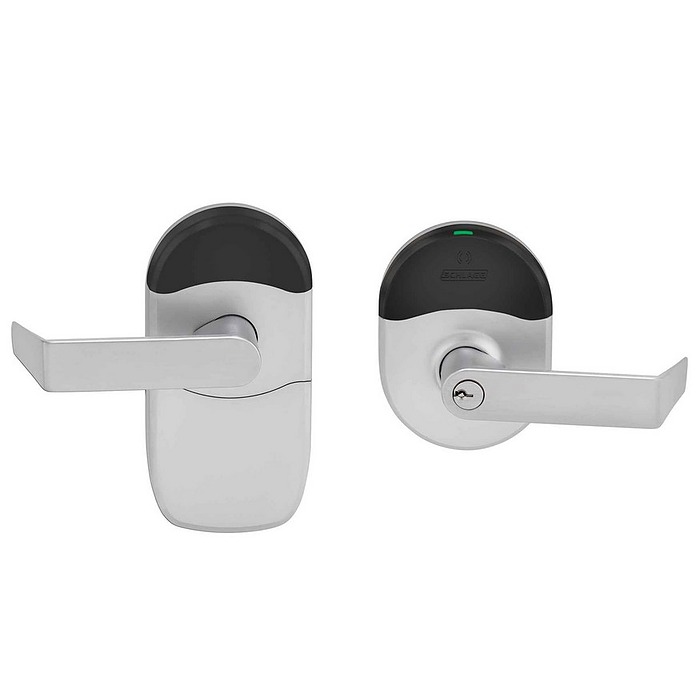

Schlage NDEB80-JD-626

Wireless Storeroom Function Lock with ENGAGE Technology

Price: $808.00 /each

SKU: NDEB80-JD-626

Choose Options Below

The Schlage NDEB80 is a wireless lock with the latest iteration of Schlage's ENGAGE technology. The new Schlage(R) NDEB Series wireless locks with ENGAGE technology are designed to be easy to install, manage and use. ENGAGE technology cloud-based wireless offline security solutions simplify the ability to connect people, openings and access management. NDE Series wireless locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit.

  • Stock Item
  • Order in the next 4 hours 50 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $808.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Rhodes (RHO) Rhodes (RHO)

Help Me Decide

  • ADA compliant levers.

Choose Finish:

626 Satin Chrome 626 Satin Chrome

Choose Key Override:

JD-Prepped for Schlage Full Size IC Core

Help Me Decide

JD- Prepped for Schlage Large format IC Core Cylinder. Core not included.



Overview

  • Schlage® NDEB series wireless locks with ENGAGE technology are designed to fit into a standard cylindrical door prep.
  • Ideal for interior offices and sensitive storage areas.
  • Prepped for Schalge LFIC, Large Formate IC Core. Core not included.
  • Up to 5000 users and 2000 event audit trail.
  • Storeroom function less IC Core, valid credential or key momentarily unlocks door. Valid credential may be used to change to a passage or secured state.
  • Inside lever always allows free exit.
  • Easily managed via a mobile app right on a smartphone or tablet.
  • With the free ENGAGE web and mobile apps, it’s easy to configure lock settings, manage users with basic access privileges, and view lock audits & alerts from anywhere.
  • With Wi-Fi built-in, the new NDEB Series wireless locks can be configured to connect to a Wi-Fi network to receive automatic daily updates.
  • NDE Series wireless locks can also be updated anytime from the ENGAGE mobile app when in Bluetooth range of lock.
  • Works with fobs, smart or prox cards.
  • Battery operated with 4 AA batteries.
  • HID compatible access credentials available, such as the 7410-10 proximity cards

Available Options: Choose Options Above

  • Lever: info icon

    • Rhodes (RHO)
  • Finish:

  • Key Override: info icon

    • JD-Prepped for Schlage Full Size IC Core

More Info

  • Handing, right-handed from factory, field reversible.
  • ANSI/BHMA A156.2-2011, Series 4000, Grade 1.
  • ANSI/BHMA A156.25-2013.
  • For doors 1 5/8" – 2" thick.
  • Backset, standard: 2-3⁄4".
  • Strike, standard: 1-1/4" x 4-7/8", ANSI square corner, with Door Position Switch magnets.
  • Communication standards, 2.4 GHz Wi-Fi (IEEE 802.11b/g)  WPA2 (Personal), WPA2 Enterprise (PEAP), WPA, WEP  Bluetooth low energy (version 4.0) Transport Layer Security (TLS) version 1.0 Advanced Encryption Standard (AES), 25
  • Operating temperature for interior doors. 32° to 120°F (0° to 49°C).
  • Communication range 50 ft - 100 ft typical with obstructions.
  • Connectivity options, ENGAGE mobile app (update manually, at lock), Wi-Fi access point (update daily), Gateway with ENGAGE technology (real time).
  • ENGAGE mobile app requirements, iOS 7.1 or later on iPhone 4S or newer, Andriod 4.4 (Kit Kat) or later.
  • ENGAGE web app requirements, Internet Explorer 11.0 or late, Chrome 38.0 or later,  Firefox 33.0 or later,  Safari for Mac OS X 10 +.
