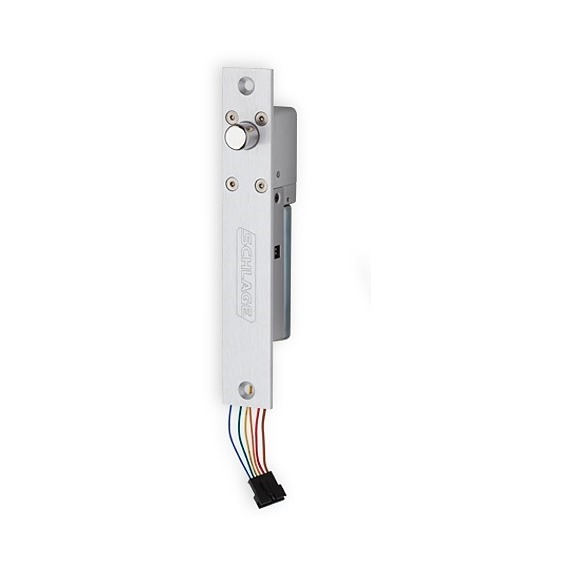

Schlage PB405

Electrified powerbolt

Quick Product Details

  • Electric PowerBolt lock
Price: $508.00 /each

SKU: PB405

Choose Options Below

The PB405/PB405S PowerBolt is a mortise, right angle deadbolt with a .61" diameter bolt and a .67" throw. It is available fail-safe PB405 or fail-secure PB405S. PowerBolts install in the door frame for minimal impact to the door

  • Stock Item
  • Order in the next 32 hours 30 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $508.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Fail Safe/Fail Secure:

PB405-Fail Safe
PB405S Fail Secure +$114.00

Overview

  • 12/24V DC  field selectable.
  • Fail Secure Lock - Requires power to unlock.
  • Fail Safe Lock - Requires power to lock.
  •  Magnetic door position switch.
  • Built in relocking time delay, field selectable for 0, 3, 6 or 9 seconds.
  • Fail-safe or fail-secure.
  •  Mortise mount PowerBolts furnished in satin aluminum finish.

Available Options: Choose Options Above

  • Fail Safe/Fail Secure:

    • PB405-Fail Safe
    • PB405S Fail Secure

Product at A Glance

  • PB405 PowerBolt lock fail-safe.
  • PB405S PowerBolt lock fail-secure.
  • Door position switch
  •  Current draw: 0.9A @ 12 VDC, 0.45A @ 24 VDC,dual voltage, field selectable.
  •  Built-in relocking option
  • Relocking time delay time: 0 sec., 3 sec., 5 sec., 9 sec. field selectable utilizing two simple dip switches
  •  Bolt diameter: 0.61 in
  •  Bolt throw: 0.67 in
  •  Weight: 1.9 lbs
  •  Dimension (L x W x D): 7.87 in x 1.26 in x 1.57 in

More Info

  • Electromechanical powerbolts not recommended where life safety may be compromised or where panic bar hardware is the only means of egress.
