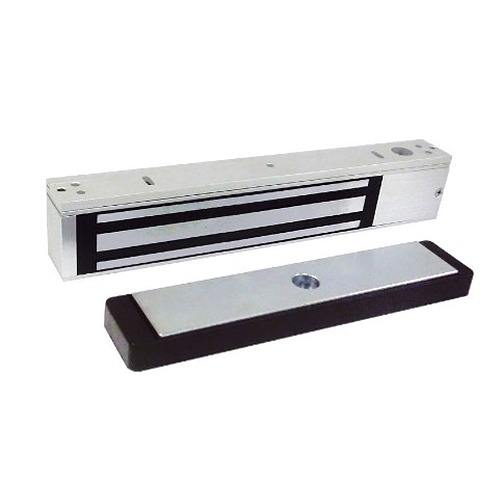

SDC 350

Narrow Electromagnetic Lock

Price: $358.00 /each

SKU: 350

Choose Options Below

This SDC 350 is a 1200lb Electromagnetic Lock made for use in narrow stile applications. Includes a Bond Alert Status, Door Position Status, and Visual Status Indicators standard.

  • Stock Item
  • Order in the next 19 hours 1 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $358.00

Choose Finish:

V - Dull Aluminum - 628 V - Dull Aluminum - 628

Overview

Features:
  • Retrofits existing Locknetics 350+*
  • Narrow housing designed for narrow frames
  • Wire access chamber with terminal block
  • Interlocking quick mount assembly
  • Field selectable dual voltage
  • Voltage and current spike protection
  • Captive lock mounting screws
  • Door position status (DPS)
  • Bond alert status (BAS))
  • Visual status indicator (LED)

Available Options: Choose Options Above

Product at A Glance

SDC’s 350 series narrow electromagnetic locks provide 1200lbs holding force and failsafe access control for perimeter and interior doors that meet building security and fire life safety code requirements. The 350 series is specifically designed for high
profile openings that require less obtrusive surface mount lock with architecturally superior appearance. Unlike typical surface mount magnetic locks that project 3 to 31/2” inches into openings, the 350 series lock projects only 2-11/16” into the opening, enabling it to blend in exceptionally well with virtually any narrow frame. The best solution available to maintain the architectural aesthetics of high profile door entrances. Designed to ensure trouble free interface with electronic access control systems, automatic door operators, peripheral equipmentand fire life safety systems for emergency release. Bond alert status (BAS), door position status (DPS) and visual status indicators (LED) are standard, enabling distributors to stock one lock and eliminate need for special orders. An internal wire chamber with PC board mounted terminal blocks permits wiring before or after lock mounting. Interlocking quick mount brackets leave hands free for fast, easy screw fastening and wiring, eliminating awkward simultaneous holding and fastening of lock. Captive lock mounting screws provide additional convenience and speed. The armature housing prevents sagging, provides quieter operation and superior appearance.
Retrofits existing Locknetics 350+ installation without replacing the original armature or additional modifications
