SDC LR100K-EM

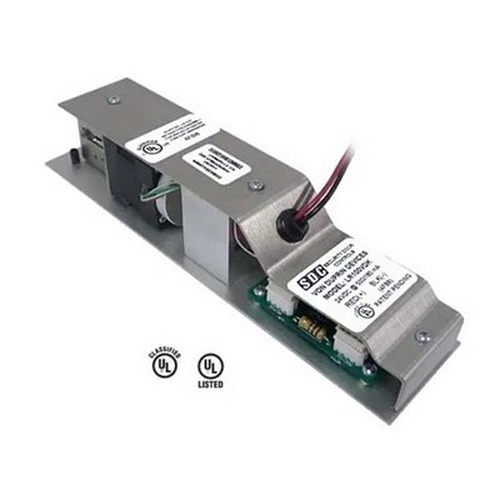

Quiet Electric Latch Retraction Kit for Short Adams Rite Exit Devices

Quick Product Details

Electric Latch Retraction Kit
Space Saver unit made for doors less than 36

Price: $553.00 /each

SKU: LR100K-EM

SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. For use with Adams Rite Hardware Exit devices. Made for the 8000 and 3000 series of Adams Rite Exit Devices. LR100-EM models are two piece space saver units, intended to gain up to one inch in spacing within the device, placing the controller board externally to accommodate smaller field cut devices for smaller openings or where space is limited within the rail

Qty.

Have a question? Need help?
Call Us: 1-866-749-7661

Stock Item
Order in the next 22 hours 41 minutes to ship TOMORROW
FREE Same-Day ShippingWhen ordered before 2PM ET
No Hassle Returns
×
Enter ZIP Code to see when you will get this item

Have a question about this product?

Overview

Field install motor driven quite latch retraction.
When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.
The latch retraction mechanism may be activated by an access control, remote control device or building automation system.
UL Classified for use with 3Hr fire rated and non-fire rated mechanical exit devices.
The exit device always provides uninhibited egress.
Retrofits Adams Rite exit devices without removing device from the door, for 8000/3000 Series Devices.
For use with Adams Rite exit devices less than 36" in length.
Low 700mA Inrush, 200 mA Continuous.
24VDC.

Product at A Glance

SDC’s QuietDuo™ LR100 series retrofit electric retraction kits enable electric access controland of panic and fire rated mechanical exit devices. When energized the motor retracts the exit device and pulls the pushpad into the (depressed) position enabling momentary or sustained push and pull operation of the door. The retraction mechanismmay be activated by an access control, remote control device or building automation system. No door sequencer required for a pair of manual doors. The exit device always provides uninhibited egress. The patented design was the first retrofit motorized electric retraction kit brought to market and has been recognized as the market leader ever since. The use of a motorized electric retraction devices provide several advantages over solenoids including lower current draw, quieter operation and greater durability over time. LR100 models are one unit completely housed within the rail of the device behind the access cover, whereas LR100-EM models are two piece space saver units, intended to gain up to one inch in spacing within the device, placing the controller board externally to accommodate smalller field cut devices for smaller openings or where space is limited within the rail.
