SDC LR100PDK

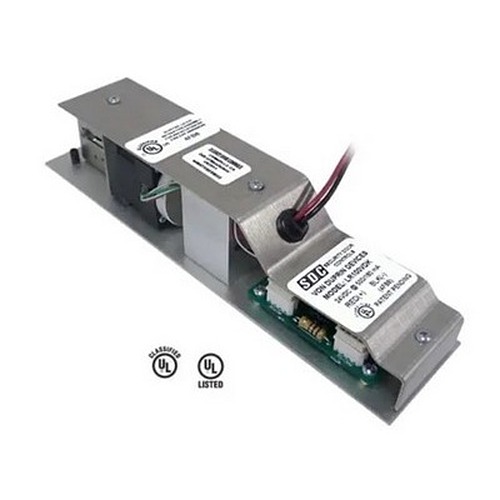

Quiet Electric Latch Retraction Kit for Precision Exit Devices

Quick Product Details

  • Electric Latch Retraction Kit
Price: $502.00 /each

SKU: LR100PDK

SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. For use with Precision Hardware Exit devices 36-48" in length only.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 16 hours 55 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Field install motor driven quite latch retraction.
  • When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.
  • The latch retraction mechanism may be activated by an access control, remote control device or building automation system.
  • UL Classified for use with 3Hr fire rated and non-fire rated mechanical exit devices.
  • The exit device always provides uninhibited egress.
  • Retrofits Von Duprin exit devices without removing device from the door.
  • For use with 36"and 48" Precision exit devices.
  • Low 700mA Inrush, 200 mA Continuous.
  • 24VDC.

Product at A Glance

SDC’s QuietDuo™ LR100 series retrofit electric latch retraction kits enable electric access controland dogging of panic and fire rated mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door. The latch retraction mechanismmay be activated by an access control, remote control device or building automation system. No door sequencer required for a pair of manual doors. The exit device always provides uninhibited egress. The patented design was the first retrofit motorized electric latch retraction kit brought to market and has been recognized as the market leader ever since. The use of a motorized electric latch retraction devices provide several advantages over solenoids including lower current draw, quieter operation and greater durability over time. LR100 models are one unit completely housed within the rail of the device behind the access cover, whereas LR100-EM models are two piece space saver units, intended to gain up to one inch in spacing within the device, placing the controller board externally to accommodate smalller field cut devices for smaller openings or where space is limited within the rail.
