Securitron DK-16

Keypad System

SKU: DK-16

Price: $252.00 /each

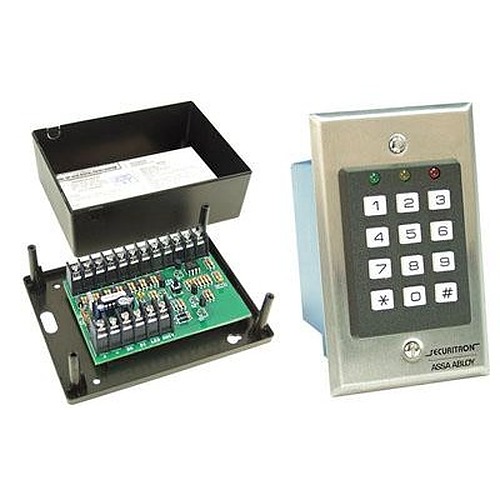

The DK-16 is an indoor Single Gang type digital keypad system designed for medium/high security control of electric locks. It consists of two components: the keypad and the CPU board. This allows the CPU board to be mounted within the protected area for higher security. Tampering with or even destroying the keypad will not release the door.

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • Order in the next 8 hours 27 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?


  •  Stainless Steel plate.
  •  Telephone-type keypad with engraved and paint filled numbers in plastic keys on a single gang box.
  •  Red, green and a yellow LED mounted on the face.
  •  Digital Keypad System circuit board is a remote unit for increased security.
  • Audible keystroke echo.
  • Digital Keypad System circuit board mounts in a plastic enclosure and provides for 59 multiple users.
  •  User code and/or hard code disable feature.
  •  5 Amp DPDT relay output for lock control and alarm shunt, camera call-up or other device interface.
  •  Request-to-exit (REX) input.
  •  True 10 digit operation (keys are not paired), 3 LEDs and a beeper.
  •  16 ft. [4.8m], 12 conductor, 22 gauge keypad cable.
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the life of the installation. HASSLE FREE, LIFETIME, NO FAULT.
Current Draw and Voltage:
  • 7mA at rest; 160mA active, 12VAC or VDC
  • 20mA at rest; 190mA active, 24VAC or VDC
Operating Temperature:
  • CPU +32 to +158F [0 to +70C]
  • Keypad +32 to +110F [0 to +43C]
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.
