Securitron DK-26

Keypad System

SKU: DK-26

Price: $259.00 /each

Choose Options Below

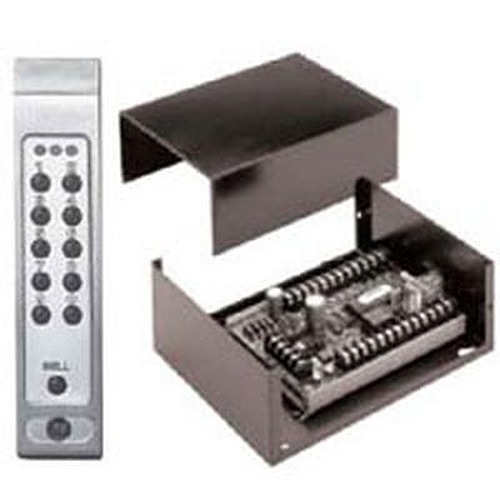

The DK-26 Series Keypad is a digital keypad system designed for medium/high security control of electric locks. It consists of two components: the narrow stile keypad and the CPU board. The rugged stainless steel keypad may be mounted outdoors in any environment as it is fully weatherproof.

  • In Stock!
  • Order in the next 38 hours 53 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $259.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:


  • Cast stainless steel with 11 EPDM rubber keys.
  • Weatherproof and vandal resistant.
  •  Mounts on a narrow stile door frame.
  •  True 10 digit operation (keys are not paired).
  •  Wiegand output available (NOT INCLUDED)
  • Digital Keypad System circuit board mounts in a metal enclosure and provides for 59 multiple users, expandable to 119.
  • User code and/or hard code disable feature.
  •  5 Amp DPDT relay output for lock control and alarm shunt, camera call-up or other device interface, REX input.
  •  16 ft. [4.8m], 12 conductor, 22 gauge keypad cable.
  • 3 LEDs and a bell button.
  • Finish-Black anodized or satin stainless steel.
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the
    life of the installation. HASSLE FREE, LIFETIME, NO FAULT.

Available Options: Choose Options Above

  • Keypad: 1-1/2"W x 7"H x 7/8"D.
  • Enclosure: 6"W x 8"H x 3"D.
Current Draw and Voltage:
  • 7mA at rest; 160mA active, 12VAC or VDC.
  • 20mA at rest; 190mA active, 24VAC or VDC.
Operating Temperature:
  • CPU +32 to +158F [0 to +70C].
  • Keypad -22 to +158F [-30 to +70C].
  • MagnaCare Lifetime Replacement No Fault Warranty:
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Securitron Keypad System
