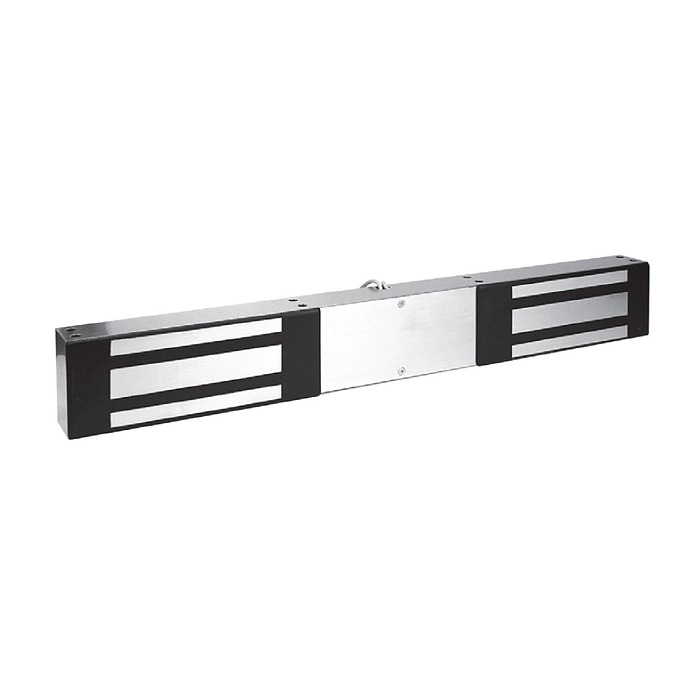

Securitron DM62

Weatherproof Magnetic Lock for Double Doors

Price: $667.00 /each

SKU: DM62

The Securitron DM62 Double Magnalock with 1200 lbs. holding force and automatic dual voltage. Recommended for exterior/exterior applications. Made for double door openings.

Because this is an electronic lock it is not subject to our standard return policy. We will not be able to accept a return for this item once electrical power has been applied to the item.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 14 hours 36 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • 3' [1 m] of jacketed, stranded conductor cable for each lock
  • Fully sealed electronics - tamper proof and weatherproof.
  • Automatic dual voltage -12 or 24 VDC. No field adjustment required.
  • Holding Force: 1200 lbs. per lock
  • Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC per lock.
  • Operating Temperature: -40 to +140F [-40 to +60C].
  • Dimensions: Magnalock: 22"L x 1-3/4"D x 3"H, Strike: 6"L x 1/2"D x 2-3/4"H Each
  • Finish-US32D/630 - Satin Stainless Steel.
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the life of the installation. HASSLE FREE, LIFETIME, NO FAULT.

Product at A Glance

Opening Type, Holding Force Double Magnalock for Double Door Openings, Holding Force of 1200lbs.
Usage Indoor/Outdoor Higher Security

More Info

  • Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
  • Fully sealed for weatherproof
    operations
  • 3' [1 m] of jacketed, stranded conductor cable for each lock
  • Automatic dual-voltage—no field adjustment required
  • Instant release circuit—no residual magnetism
  • Noise suppression with included MOV
  • Efficient, low power usage
  • Rust resistant - all ferrous metal surfaces plated for durability
  • UL 10C Listed.
  • ANSI/UL 294 Listed.
  • ANSI/BHMA A156.23, Grade 1; E08501-1000.
  • CSFM- California State Fire Marshal Approved.
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.
